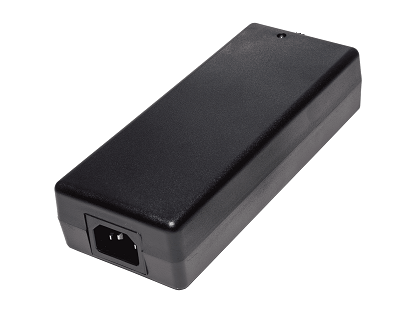

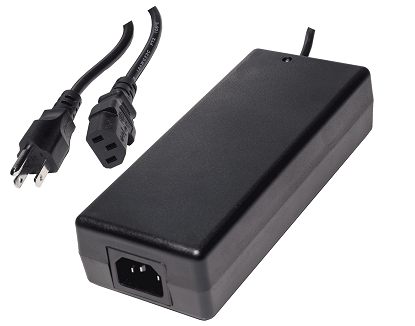

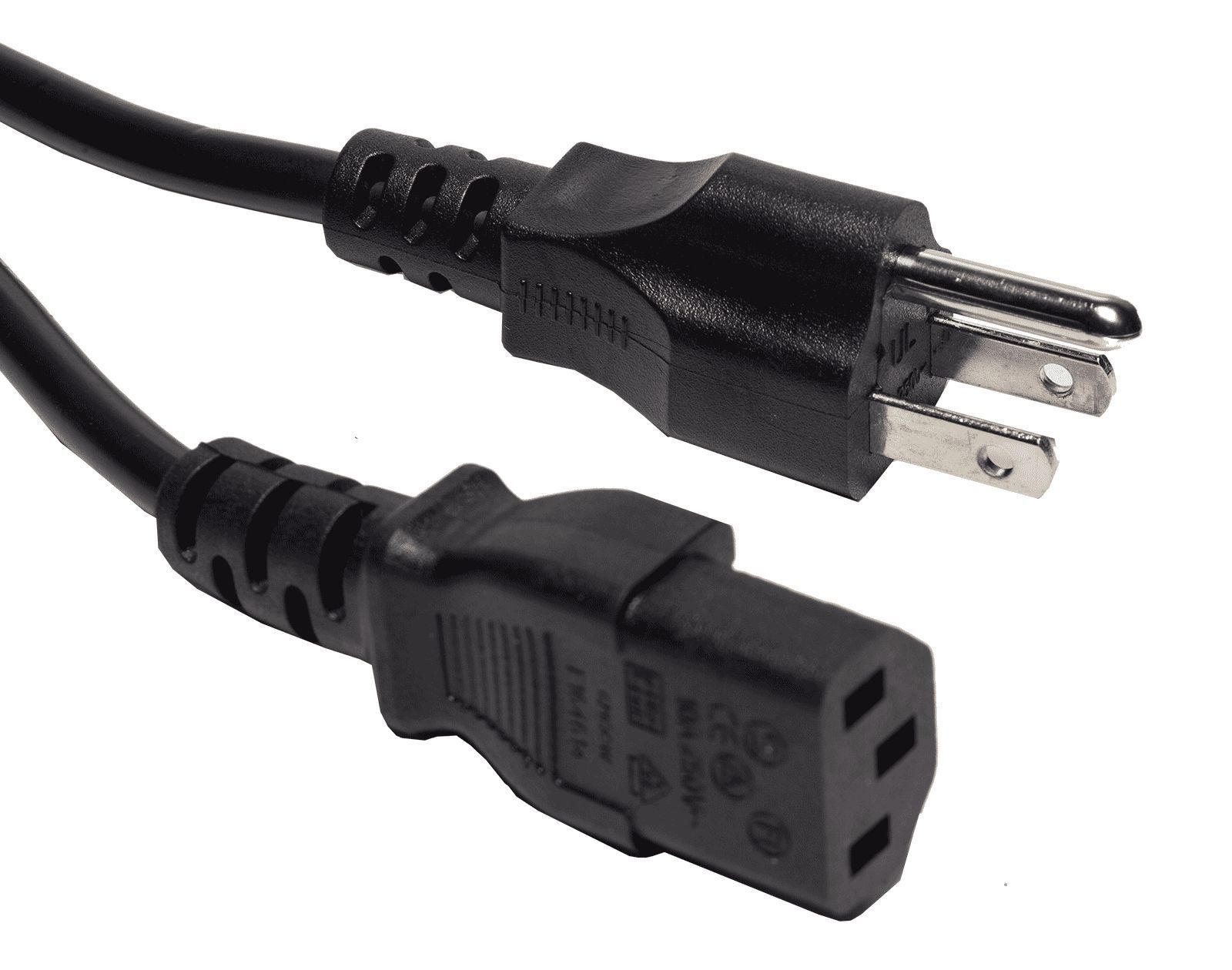

Adaptador de corriente - 110-240 VCA - 12 VCC - 10A
Adaptador de corriente - 110-240 VCA - 12 VCC - 10A
Modelo: AC-15
No se pudo cargar la disponibilidad de recogida
Nuestro adaptador de CA a CC está diseñado para clientes que desean utilizar alimentación de CA y no desean utilizar una fuente de batería de 12 VCC para alimentar sus dispositivos. Este adaptador con certificación UL se puede utilizar junto con nuestros interruptores basculantes o cualquier otro dispositivo de control que requiera menos de 10 amperios de alimentación de 12 V CC.
Nuestro adaptador de CA a CC está diseñado para clientes que desean utilizar alimentación de CA y no desean utilizar una fuente de batería de 12 VCC para alimentar sus dispositivos. Este adaptador con certificación UL se puede utilizar junto con nuestros interruptores basculantes o cualquier otro dispositivo de control que requiera menos de 10 amperios de alimentación de 12 V CC.
¿Cómo instalar un actuador?
La instalación puede ser un proceso simple, fácil y sin complicaciones para cualquier persona. S...
Control Wi-Fi de actuadores lineales de alta corriente
Este artículo le mostrará cómo utilizar la caja de control Wi-Fi PA-35 para controlar actuadores ...
Compartimiento oculto del gabinete de TV usando nuestro actuador rápido
Este cliente utilizó nuestro actuador lineal compacto de alta velocidad PA-15 para este proyecto ...
Depending on your application, there are different specification requirements you should consider when determining the linear actuator you need. These requirements include force, stroke, speed and mounting dimensions. For detailed actuator information, you can refer to either the datasheet or the specification table located on the selected actuator's product page. You can also contact us to speak with one of our expert engineers.
Duty cycle is the fraction of the working period in which a linear actuator can remain active. You can calculate the duty cycle of a linear actuator by using the following equation: Duty cycle (%) = (Time the linear actuator is active) / (Time for one working period)
For example: With a 25% duty cycle, an actuator can run for 5 minutes continuously before needing to rest for 15 minutes before operating.
Stroke is the travel distance of the extending rod. To find the stroke length you require, measure your application from the fully retracted position to the fully extended position. The difference will equal the stroke length you require.
We always recommend purchasing an actuator with a higher force rating than what the application requires. If unsure of your force requirements, this article may help you calculate this: How to Calculate Force to Find the Right Linear Actuator
Yes, this is possible. However, it does depend on the units you are currently using. To synchronize actuators, they require a form of feedback such as a potentiometer or hall effect sensors. For more information, see below some of our key content regarding linear actuator synchronization.
The control box you choose should be able to provide sufficient voltage and current rating to your actuator. If you are unsure of the specifications, please contact us.
Alternatively, you can also find compatible control boxes on your selected linear actuator's product page.
Backdriving is when an actuator starts sliding down under load, when it is either overloaded or when the actuator has been damaged. Watch the video.
What Does Dynamic and Static Load Ratings Mean?Dynamic load rating is the amount of weight an actuator can pull or push safely when being powered. Static load rating is the amount of weight the actuator can hold or withstand without back driving when it is not being powered. For example, let's just say you have an actuator installed on a window and the static load rating of the actuator is 100lbs, it could experience backdriving when there is a high wind event, which means there will be more pressure exerted on the actuator which would exceed the 100lbs load rating of the actuator.
What Is Lateral Loading?Lateral loading is when the actuator experiences forces from the lateral plane. Actuators are not meant to handle lateral forces at all so if it experiences any lateral forces, it will likely damage the actuator or bend the rod. So it's advised never to use lateral forces and always make sure the actuator is fully in line or in sync with your application, so it does not take any load other than the axial load. Watch the video.
