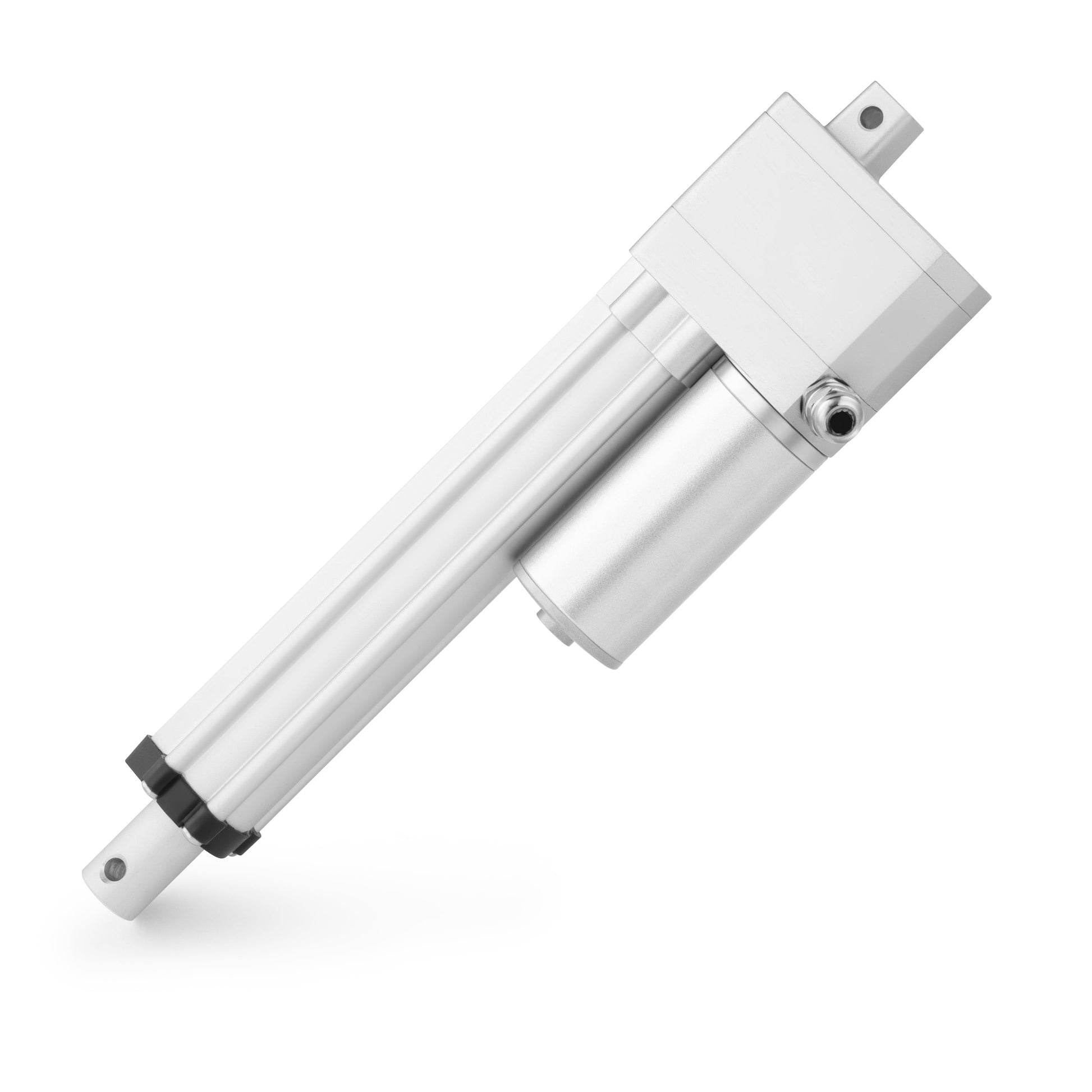

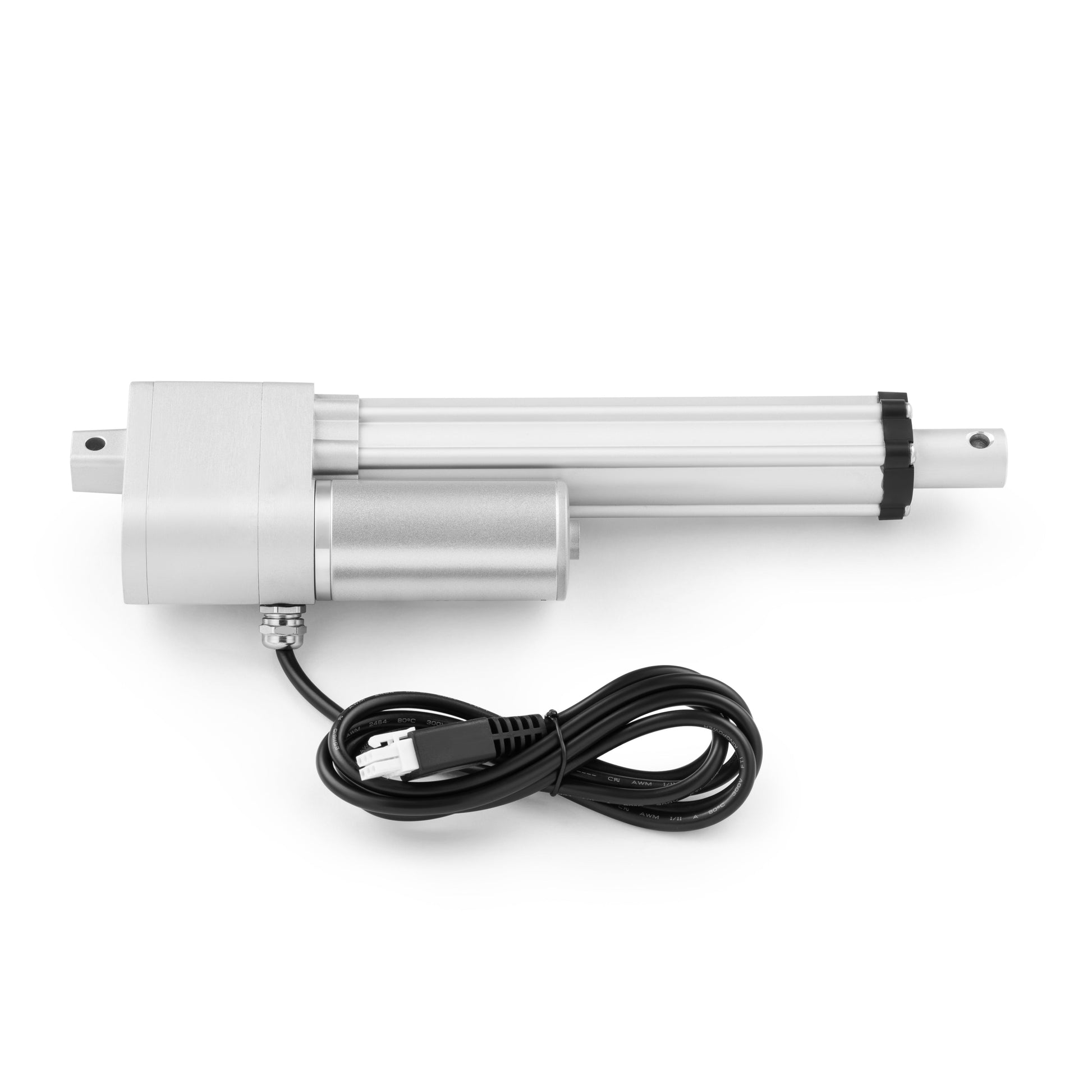

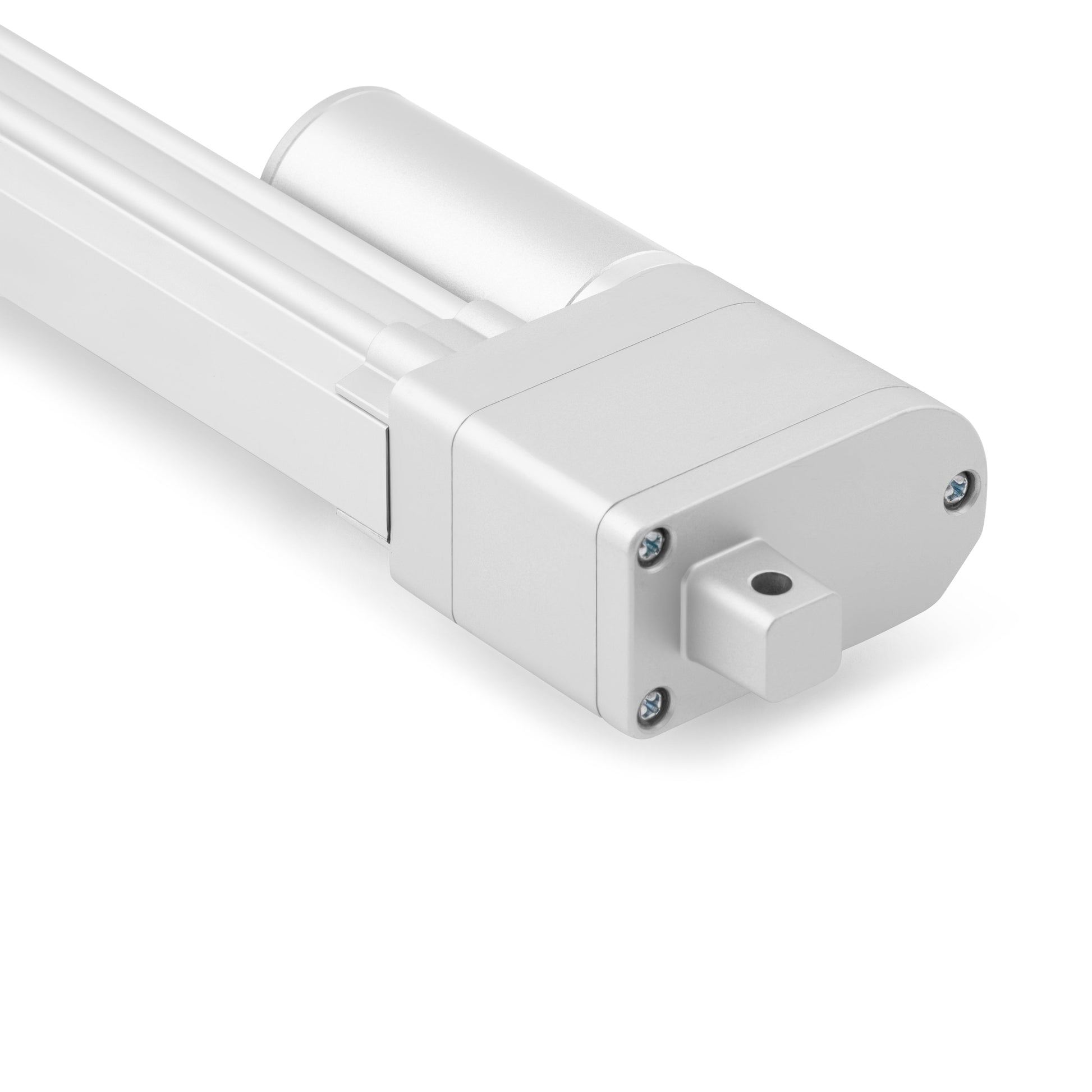

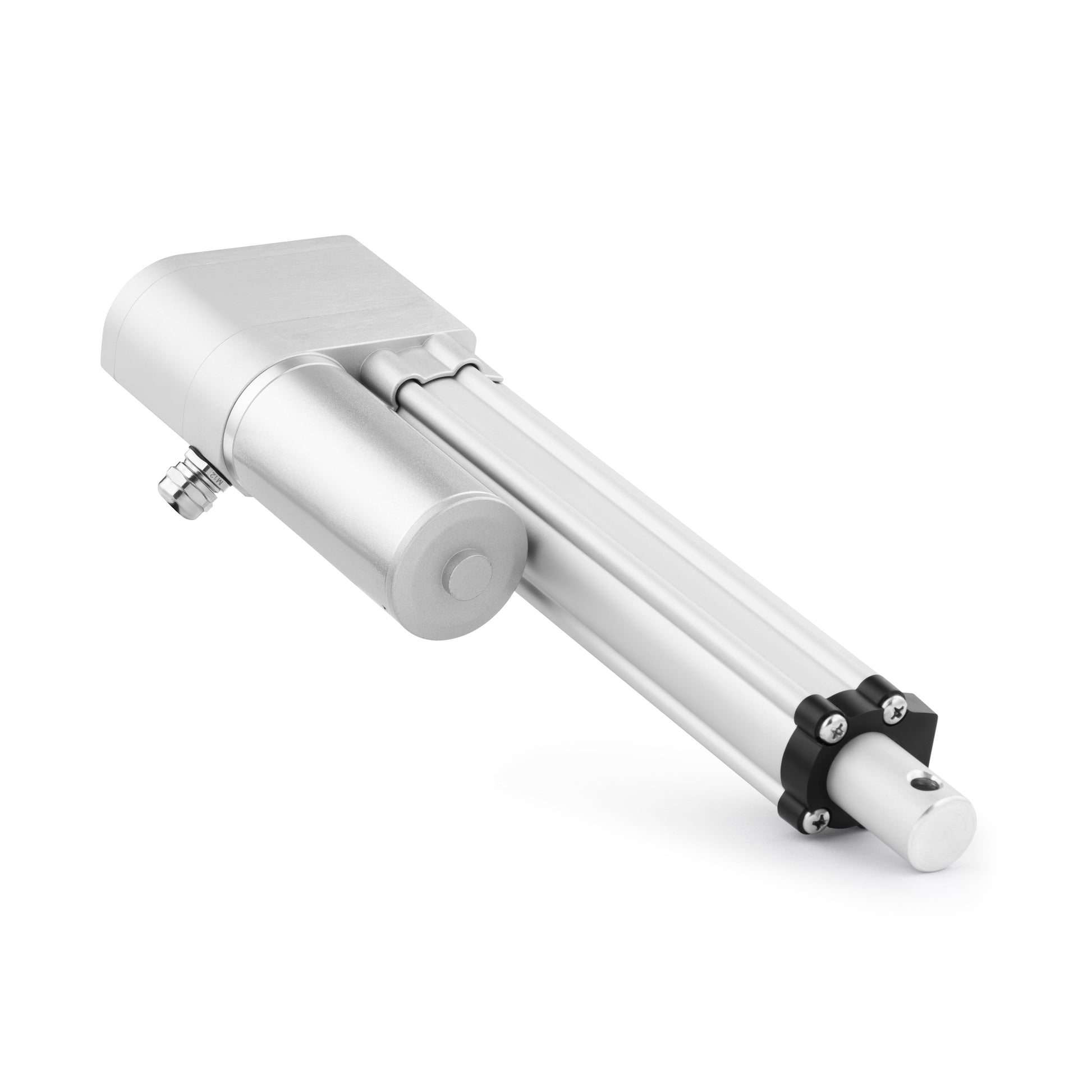

Potentiometer Feedback IP65 Mini Linear Actuator
Potentiometer Feedback IP65 Mini Linear Actuator
Modelo: PA-01-1-169-POT-12VDC
No se pudo cargar la disponibilidad de recogida
The PA-01-POT Potentiometer Feedback Linear Actuator combines the compact design of the mini linear actuator platform with integrated position feedback for applications that require repeatable, position-aware motion. Built on the proven PA-01 platform, this compact electric linear actuator features a stainless steel stroke rod, aluminum alloy housing, and IP65 ingress protection for dependable operation in demanding environments. Available in 12 VDC and 24 VDC configurations, the PA-01-POT supports a wide range of stroke lengths and force options while providing potentiometer feedback for advanced motion control.
The PA-01-POT Potentiometer Feedback Linear Actuator combines compact size, low current draw, and multiple performance configurations with integrated position feedback. The potentiometer continuously reports actuator position, making the PA-01-POT suitable for applications requiring repeatable positioning, synchronized motion, or closed-loop control when paired with a compatible control system. Common applications include food and beverage automation, home automation, medical equipment, and general automation.
*Product housing may vary from images based on available inventory for the selected force and stroke length at the time of order.

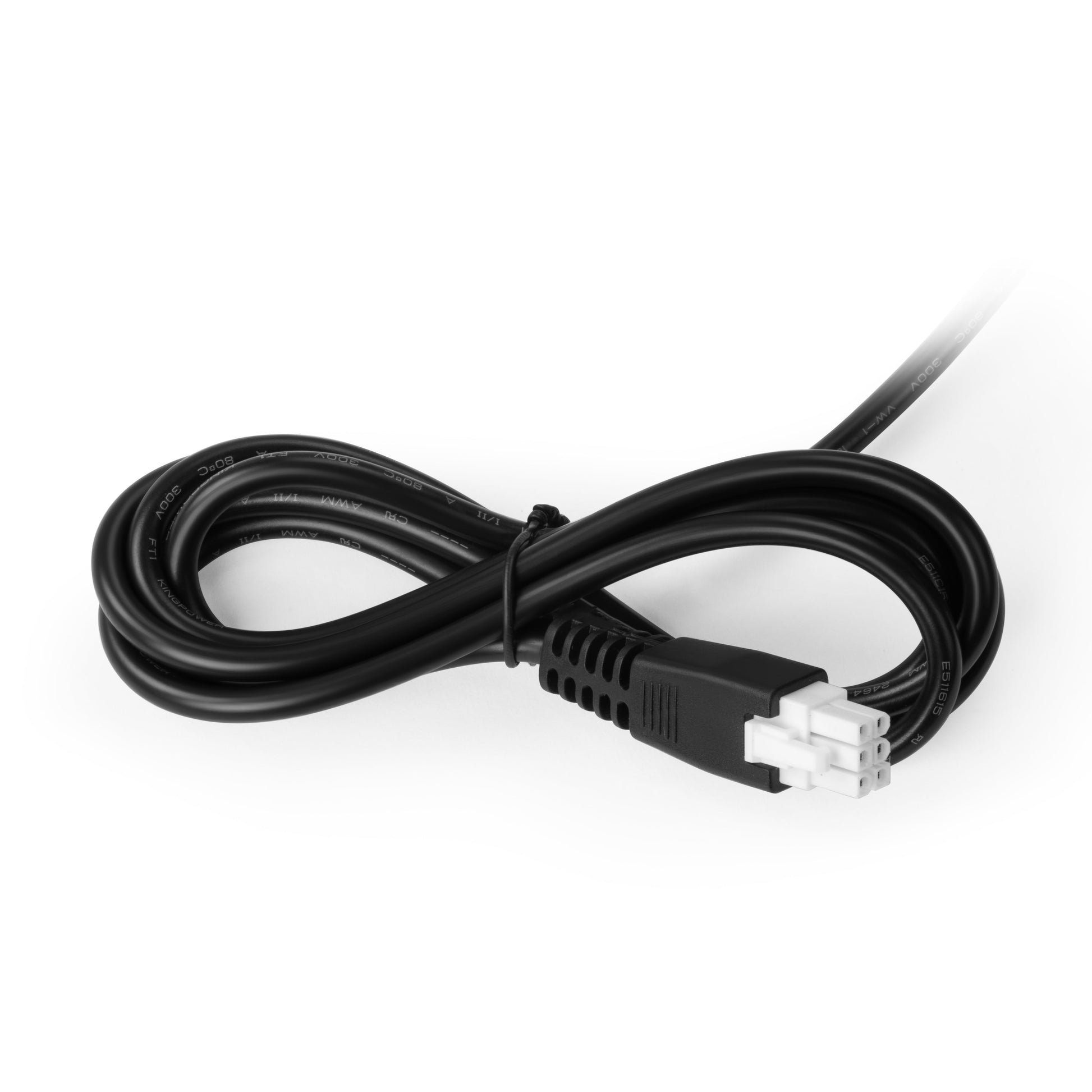

Actuators Comparison ChartThe PA-01-POT is designed for straightforward integration into compact automation systems that require position feedback. A standard 6-pin connector combines actuator power and potentiometer feedback connections, while the compact footprint and low current requirements help simplify installation into new and existing systems. Refer to the Product Specifications table for dimensions, duty cycle, environmental rating, connector type, feedback type, materials, stroke range, and other technical specifications.
Complete your PA-01-POT Potentiometer Feedback Linear Actuator system with compatible mounting brackets and control components. Because this model includes potentiometer feedback, select control components that support the required voltage, current, connector type, and feedback functionality.
MOUNTING BRACKETS:
The PA-01-POT is compatible with the BRK-14, BRK-01-U, BRK-21, and BRK-22 mounting brackets. These options support different mounting requirements and installation configurations. Refer to the corresponding product pages and compatibility tables to select the appropriate bracket for your application.
CONTROL SYSTEMS:
The PA-01-POT features low current draw and integrated potentiometer feedback for use with compatible Progressive Automations control systems. Refer to the compatibility tables to select a control box or controller that supports your actuator voltage, current requirements, connector type, and potentiometer feedback configuration.
Custom options
Looking for an actuator but the specifications don't exactly match what you require? We have an extensive list of customization capabilities to ensure you get exactly what you need for your project. Download this product's data sheet and find out more about your customization options!
The PA-01-POT Potentiometer Feedback Linear Actuator combines the compact design of the mini linear actuator platform with integrated position feedback for applications that require repeatable, position-aware motion. Built on the proven PA-01 platform, this compact electric linear actuator features a stainless steel stroke rod, aluminum alloy housing, and IP65 ingress protection for dependable operation in demanding environments. Available in 12 VDC and 24 VDC configurations, the PA-01-POT supports a wide range of stroke lengths and force options while providing potentiometer feedback for advanced motion control.
The PA-01-POT Potentiometer Feedback Linear Actuator combines compact size, low current draw, and multiple performance configurations with integrated position feedback. The potentiometer continuously reports actuator position, making the PA-01-POT suitable for applications requiring repeatable positioning, synchronized motion, or closed-loop control when paired with a compatible control system. Common applications include food and beverage automation, home automation, medical equipment, and general automation.
*Product housing may vary from images based on available inventory for the selected force and stroke length at the time of order.
Actuators Comparison ChartThe PA-01-POT is designed for straightforward integration into compact automation systems that require position feedback. A standard 6-pin connector combines actuator power and potentiometer feedback connections, while the compact footprint and low current requirements help simplify installation into new and existing systems. Refer to the Product Specifications table for dimensions, duty cycle, environmental rating, connector type, feedback type, materials, stroke range, and other technical specifications.
Complete your PA-01-POT Potentiometer Feedback Linear Actuator system with compatible mounting brackets and control components. Because this model includes potentiometer feedback, select control components that support the required voltage, current, connector type, and feedback functionality.
MOUNTING BRACKETS:
The PA-01-POT is compatible with the BRK-14, BRK-01-U, BRK-21, and BRK-22 mounting brackets. These options support different mounting requirements and installation configurations. Refer to the corresponding product pages and compatibility tables to select the appropriate bracket for your application.
CONTROL SYSTEMS:
The PA-01-POT features low current draw and integrated potentiometer feedback for use with compatible Progressive Automations control systems. Refer to the compatibility tables to select a control box or controller that supports your actuator voltage, current requirements, connector type, and potentiometer feedback configuration.
Custom options
Looking for an actuator but the specifications don't exactly match what you require? We have an extensive list of customization capabilities to ensure you get exactly what you need for your project. Download this product's data sheet and find out more about your customization options!
Depending on your application, there are different specification requirements you should consider when determining the linear actuator you need. These requirements include force, stroke, speed and mounting dimensions. For detailed actuator information, you can refer to either the datasheet or the specification table located on the selected actuator's product page. You can also contact us to speak with one of our expert engineers.
Duty cycle is the fraction of the working period in which a linear actuator can remain active. You can calculate the duty cycle of a linear actuator by using the following equation: Duty cycle (%) = (Time the linear actuator is active) / (Time for one working period)
For example: With a 25% duty cycle, an actuator can run for 5 minutes continuously before needing to rest for 15 minutes before operating.
Stroke is the travel distance of the extending rod. To find the stroke length you require, measure your application from the fully retracted position to the fully extended position. The difference will equal the stroke length you require.
We always recommend purchasing an actuator with a higher force rating than what the application requires. If unsure of your force requirements, this article may help you calculate this: How to Calculate Force to Find the Right Linear Actuator
Yes, this is possible. However, it does depend on the units you are currently using. To synchronize actuators, they require a form of feedback such as a potentiometer or hall effect sensors. For more information, see below some of our key content regarding linear actuator synchronization.
The control box you choose should be able to provide sufficient voltage and current rating to your actuator. If you are unsure of the specifications, please contact us.
Alternatively, you can also find compatible control boxes on your selected linear actuator's product page.
Backdriving is when an actuator starts sliding down under load, when it is either overloaded or when the actuator has been damaged. Watch the video.
What Does Dynamic and Static Load Ratings Mean?Dynamic load rating is the amount of weight an actuator can pull or push safely when being powered. Static load rating is the amount of weight the actuator can hold or withstand without back driving when it is not being powered. For example, let's just say you have an actuator installed on a window and the static load rating of the actuator is 100lbs, it could experience backdriving when there is a high wind event, which means there will be more pressure exerted on the actuator which would exceed the 100lbs load rating of the actuator.
What Is Lateral Loading?Lateral loading is when the actuator experiences forces from the lateral plane. Actuators are not meant to handle lateral forces at all so if it experiences any lateral forces, it will likely damage the actuator or bend the rod. So it's advised never to use lateral forces and always make sure the actuator is fully in line or in sync with your application, so it does not take any load other than the axial load. Watch the video.
