The PA-10-HALL Linear Actuator combines high-force performance with integrated Hall effect feedback for synchronized movement, position feedback, and precise motion control. Its IP66 protection rating makes it suitable for demanding marine, automotive, and agricultural applications.
For added corrosion resistance, the PA-10-HALL is available with a Salt Spray-rated porcelain-plated housing tested for up to 400 hours of salt spray exposure. Learn more in our IP Rating Guide.
The PA-10-HALL combines high-force performance with multiple speed and current configurations, allowing users to select the appropriate balance of load capacity, travel speed, and power consumption for their application.
The PA-10-HALL features integrated Hall effect feedback for position monitoring and synchronized actuator movement. Its compact construction and IP66 ingress protection provide reliable operation against dust and water exposure in demanding indoor and outdoor applications.
Refer to the Product Specifications table for stroke options, voltage, feedback type, duty cycle, IP rating, dimensions, connector information, operating conditions, and other technical specifications.
Complete your PA-10-HALL system with compatible mounting and Hall effect control components.
MOUNTING BRACKETS:
The BRK-09 Mounting Bracket is compatible with the PA-10-HALL and can be installed on either the motor or stroke end, allowing over 180° of rotation for flexible installation. Browse our Mounting Brackets collection for additional mounting solutions.
CONTROL SYSTEMS:
The PA-10-HALL can be paired with compatible Hall effect Control Systems to support position feedback, synchronized actuator movement, and advanced motion control.
*The PA-10-HALL can be paired with compatible Hall effect control boxes to synchronize multiple actuators operating at the same speed. For assistance selecting a compatible control system, please contact sales@progressiveautomations.com.
Actuators Comparison ChartCustom options
Looking for an actuator but the specifications don't exactly match what you require? We have an extensive list of customization capabilities to ensure you get exactly what you need for your project. Download this product's data sheet and find out more about your customization options!
The PA-10-HALL Linear Actuator combines high-force performance with integrated Hall effect feedback for synchronized movement, position feedback, and precise motion control. Its IP66 protection rating makes it suitable for demanding marine, automotive, and agricultural applications.
For added corrosion resistance, the PA-10-HALL is available with a Salt Spray-rated porcelain-plated housing tested for up to 400 hours of salt spray exposure. Learn more in our IP Rating Guide.
The PA-10-HALL combines high-force performance with multiple speed and current configurations, allowing users to select the appropriate balance of load capacity, travel speed, and power consumption for their application.
The PA-10-HALL features integrated Hall effect feedback for position monitoring and synchronized actuator movement. Its compact construction and IP66 ingress protection provide reliable operation against dust and water exposure in demanding indoor and outdoor applications.
Refer to the Product Specifications table for stroke options, voltage, feedback type, duty cycle, IP rating, dimensions, connector information, operating conditions, and other technical specifications.
Complete your PA-10-HALL system with compatible mounting and Hall effect control components.
MOUNTING BRACKETS:
The BRK-09 Mounting Bracket is compatible with the PA-10-HALL and can be installed on either the motor or stroke end, allowing over 180° of rotation for flexible installation. Browse our Mounting Brackets collection for additional mounting solutions.
CONTROL SYSTEMS:
The PA-10-HALL can be paired with compatible Hall effect Control Systems to support position feedback, synchronized actuator movement, and advanced motion control.
*The PA-10-HALL can be paired with compatible Hall effect control boxes to synchronize multiple actuators operating at the same speed. For assistance selecting a compatible control system, please contact sales@progressiveautomations.com.
Actuators Comparison ChartCustom options
Looking for an actuator but the specifications don't exactly match what you require? We have an extensive list of customization capabilities to ensure you get exactly what you need for your project. Download this product's data sheet and find out more about your customization options!
| Input Voltage | 12VDC,24VDC |
| Stroke | 2.0" to 24.0" |
| Feedback | Hall Effect Feedback |
| Duty Cycle | 20% (4 minutes on, 16 minutes off) |
| Weather Protection | IP66 |
| Operational Temperature | -20ºC to 70ºC (-4ºF to 158ºF) |
| Operating Noise | <45 dBA |
| Limit Switch | Built In (Non-Adjustable) |
| Cable Length | 60" |

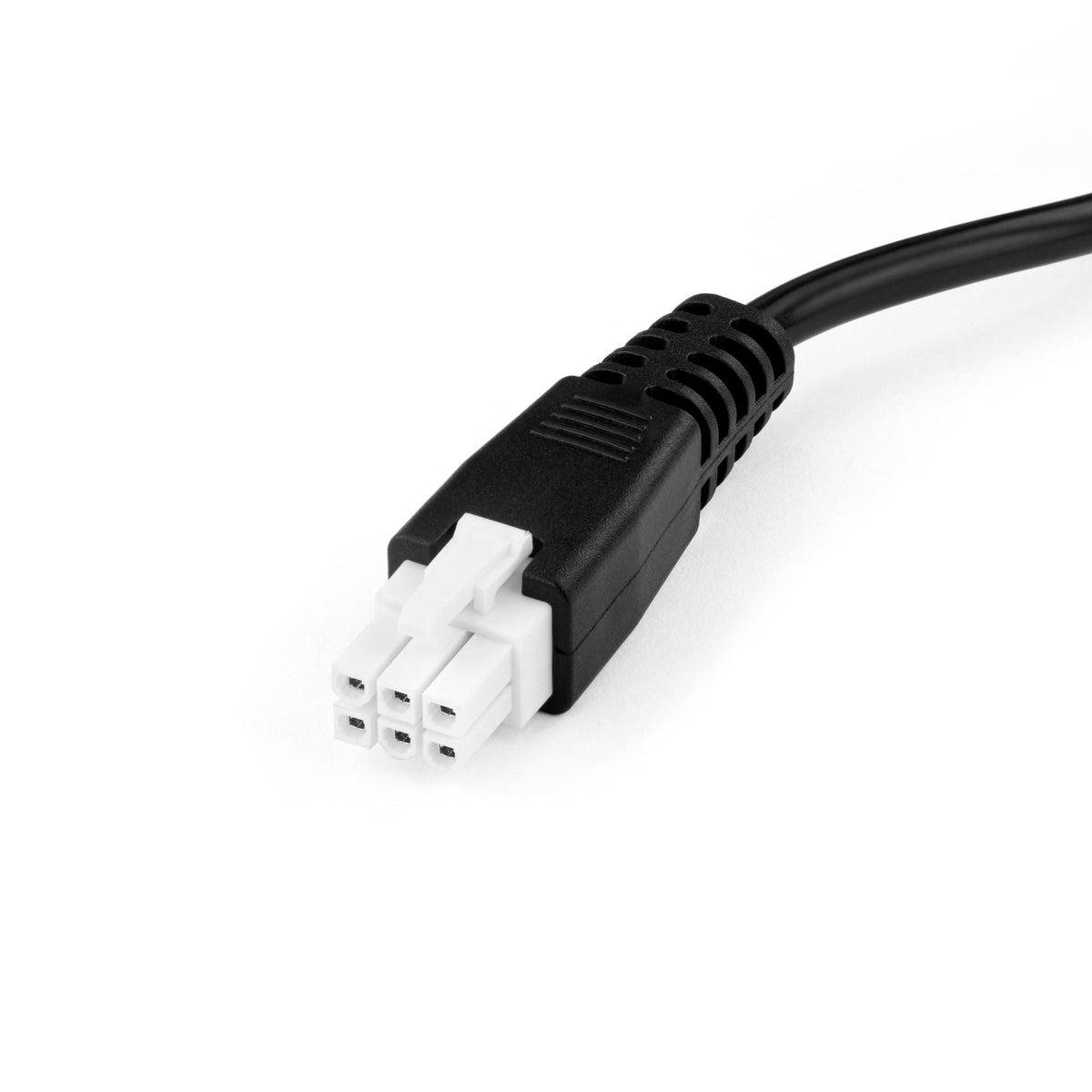

| Connector | Molex Mini-Fit Jr 6-Pin |
| Front Mounting Hole Size | 0.32" |
| Rear Mounting Hole Size | 0.32" |
| Actuator Type | Mini, Industrial |
| Motor Type | Brushed DC Motor |
| Screw Type | ACME |
| Stroke Rod Material | Stainless Steel |
| Housing Material | Anodic Oxidation (Standard), Porcelain Plating (Salt Spray Rating) |
| Gear Material | Polyoxymethylene |
| Certifications | CE, UL (optional) |
| Compatible Mounting Brackets | BRK-09 |
Depending on your application, there are different specification requirements you should consider when determining the linear actuator you need. These requirements include force, stroke, speed and mounting dimensions. For detailed actuator information, you can refer to either the datasheet or the specification table located on the selected actuator's product page. You can also contact us to speak with one of our expert engineers.
Duty cycle is the fraction of the working period in which a linear actuator can remain active. You can calculate the duty cycle of a linear actuator by using the following equation: Duty cycle (%) = (Time the linear actuator is active) / (Time for one working period)
For example: With a 25% duty cycle, an actuator can run for 5 minutes continuously before needing to rest for 15 minutes before operating.
Stroke is the travel distance of the extending rod. To find the stroke length you require, measure your application from the fully retracted position to the fully extended position. The difference will equal the stroke length you require.
We always recommend purchasing an actuator with a higher force rating than what the application requires. If unsure of your force requirements, this article may help you calculate this: How to Calculate Force to Find the Right Linear Actuator
Yes, this is possible. However, it does depend on the units you are currently using. To synchronize actuators, they require a form of feedback such as a potentiometer or hall effect sensors. For more information, see below some of our key content regarding linear actuator synchronization.
The control box you choose should be able to provide sufficient voltage and current rating to your actuator. If you are unsure of the specifications, please contact us.
Alternatively, you can also find compatible control boxes on your selected linear actuator's product page.
Backdriving is when an actuator starts sliding down under load, when it is either overloaded or when the actuator has been damaged. Watch the video.
What Does Dynamic and Static Load Ratings Mean?Dynamic load rating is the amount of weight an actuator can pull or push safely when being powered. Static load rating is the amount of weight the actuator can hold or withstand without back driving when it is not being powered. For example, let's just say you have an actuator installed on a window and the static load rating of the actuator is 100lbs, it could experience backdriving when there is a high wind event, which means there will be more pressure exerted on the actuator which would exceed the 100lbs load rating of the actuator.
What Is Lateral Loading?Lateral loading is when the actuator experiences forces from the lateral plane. Actuators are not meant to handle lateral forces at all so if it experiences any lateral forces, it will likely damage the actuator or bend the rod. So it's advised never to use lateral forces and always make sure the actuator is fully in line or in sync with your application, so it does not take any load other than the axial load. Watch the video.
