U-Shaped Mounting Bracket for PA-01, PA-14 and PA-14P
Passer aux informations produits
1 de 5

U-Shaped Mounting Bracket for PA-01, PA-14 and PA-14P

U-Shaped Mounting Bracket for PA-01, PA-14 and PA-14P

SKU: BRK-01-U

Out of stock
Back in stock soon
Prix habituel $9.90 USD
Prix habituel Prix promotionnel $9.90 USD
En vente Épuisé
  • Linear Actuator Calculator
  • Get Free Actuator Guide
Afficher tous les détails
Description
Specifications

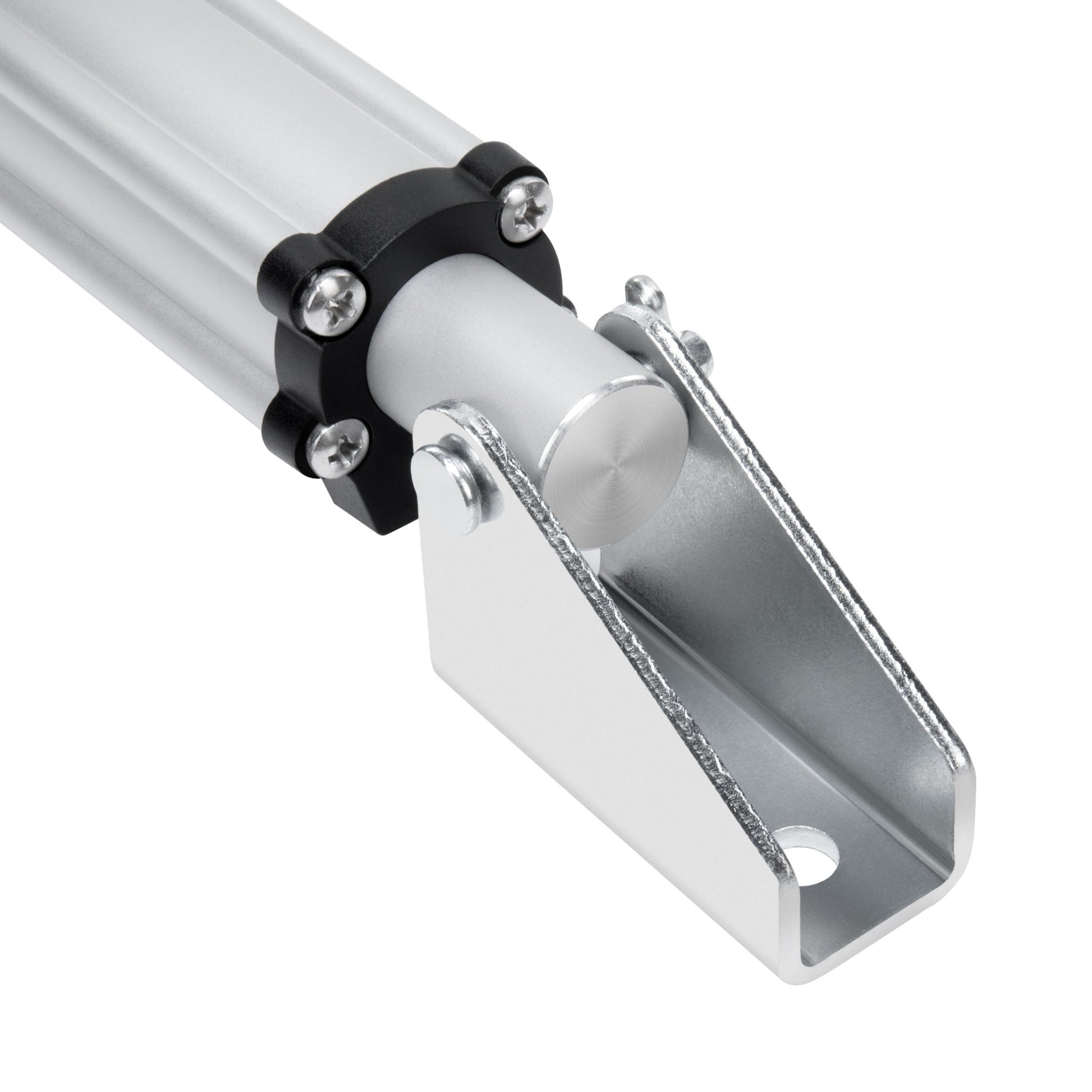

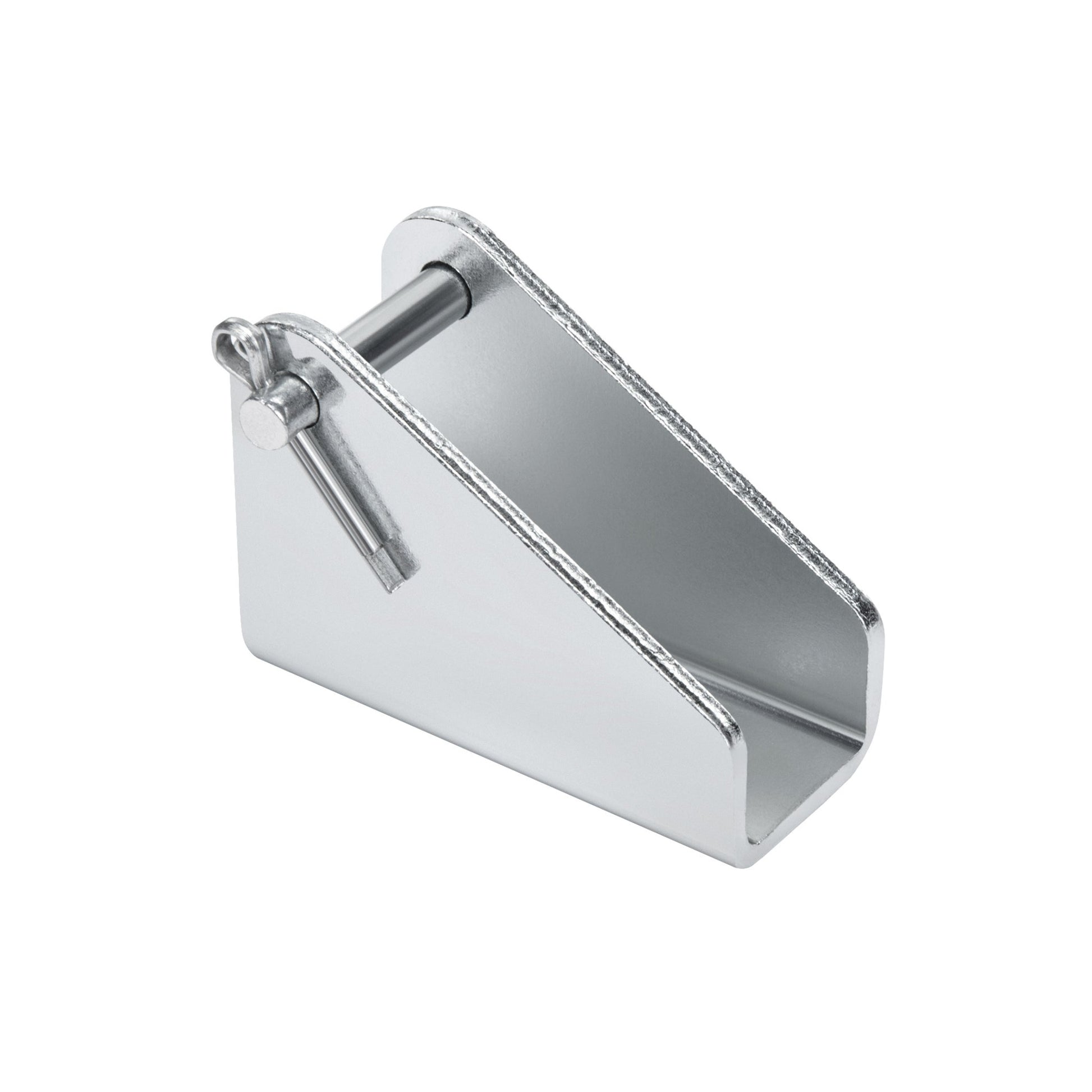

The BRK-01-U U-Shaped Mounting Bracket mounts the front or rear end of PA-01, PA-01-HALL, PA-14 and PA-14P actuators. Its U-shaped design allows 180° of movement, so the actuator can follow the arc of hinged lids, hatches and levers.

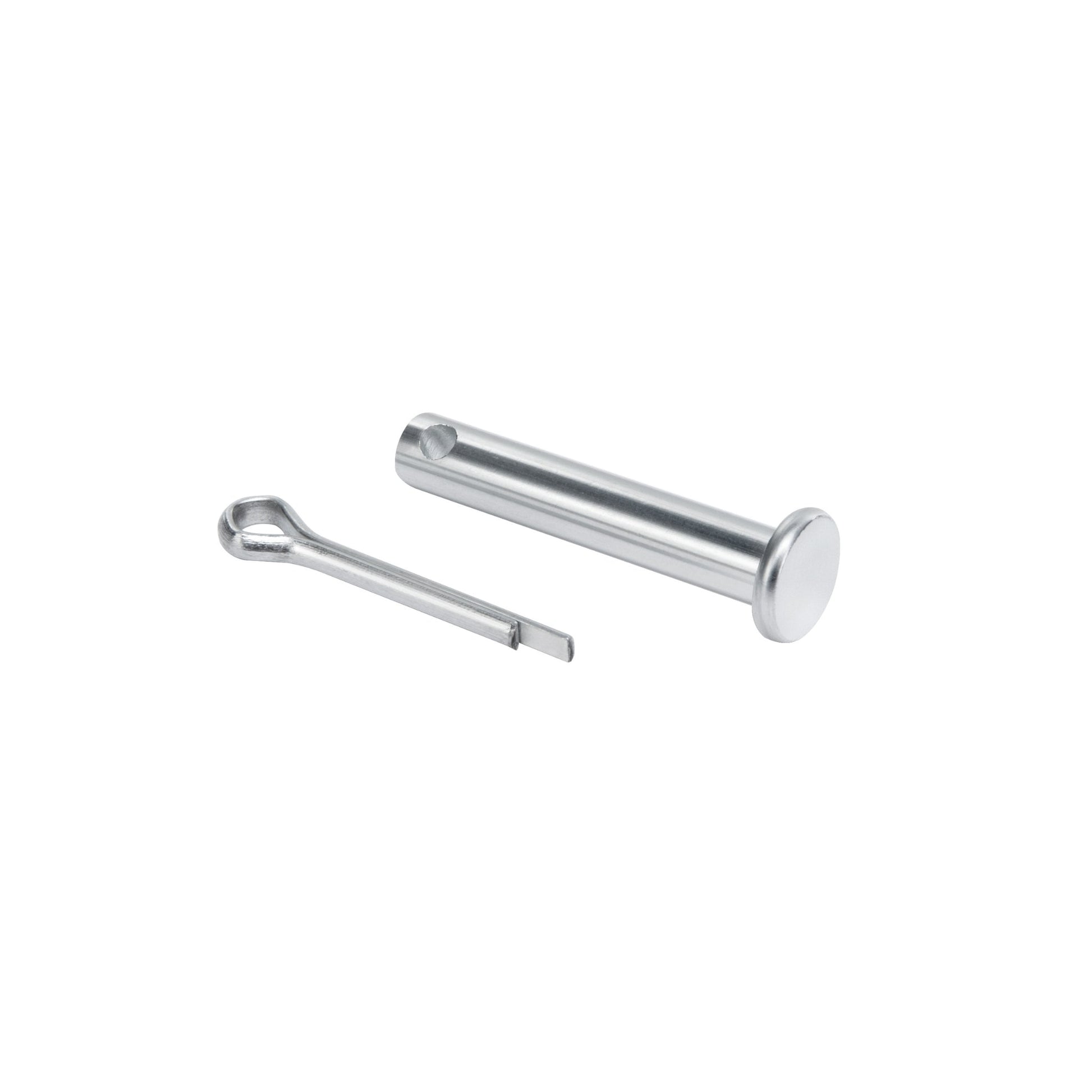

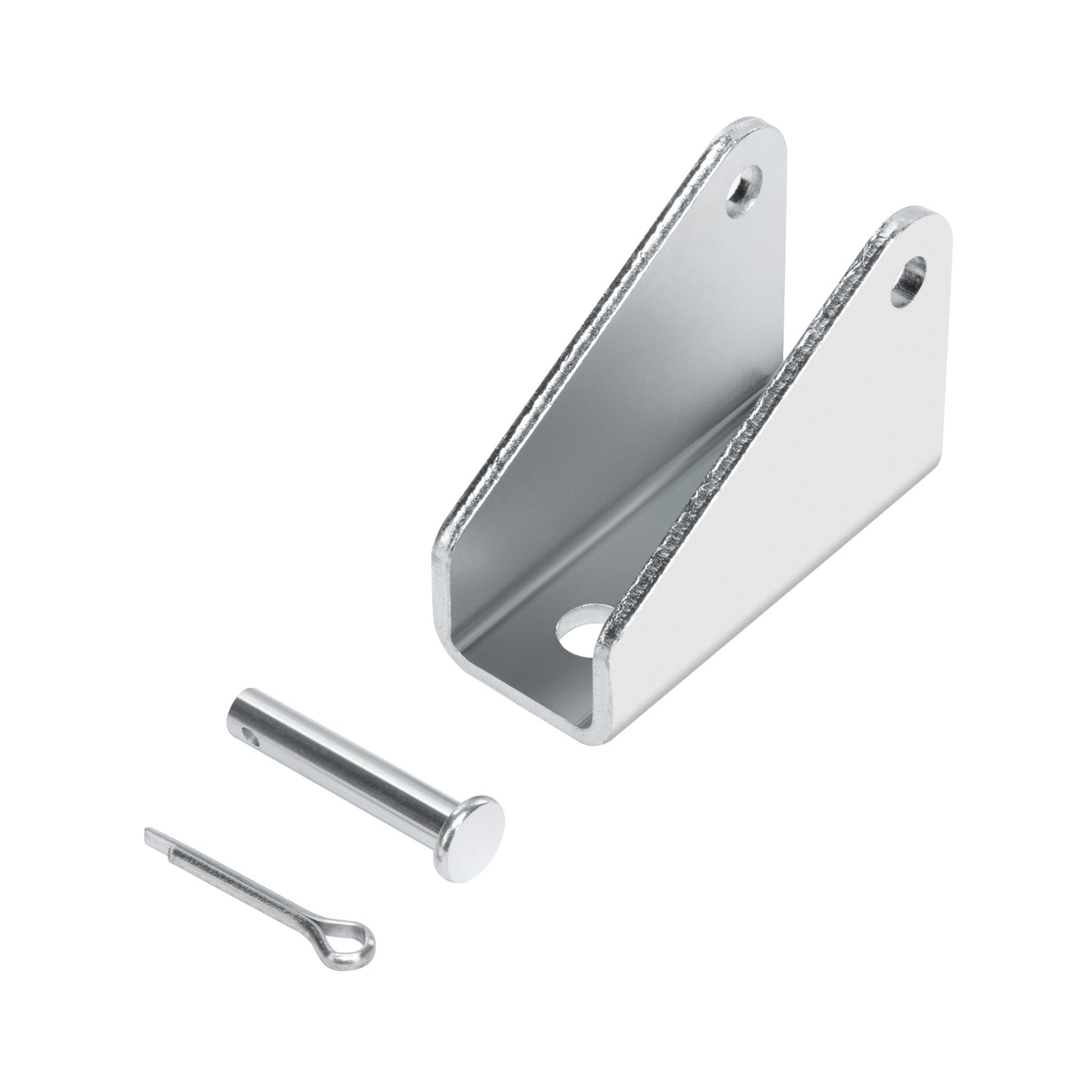

The BRK-01-U is made from galvanized cold-rolled steel. Pins and hardware are carbon steel. It weighs 0.25 lbs. The kit includes 1x Mounting Bracket, 1x Cotter Pin, 1x Clevis Pin.

Attach the BRK-01-U to your application surface, align the actuator mounting hole with the bracket and secure it with the included clevis pin and cotter pin. Brackets are sold individually; most installations use one bracket at each end of the actuator.

COMPATIBLE ACCESSORIES:

The BRK-01-U U-Shaped Mounting Bracket is designed for use with the PA-01, PA-01 Hall Effect, PA-14 and PA-14P linear actuators.

BRK-01-U, BRK-01-U Mounting Bracket, U-Shaped Mounting Bracket, Mounting Bracket, PA-01 Bracket, PA-01 Hall Effect Bracket, PA-14 Bracket, PA-14P Bracket, U Bracket, Actuator Mounting Bracket, Clevis Bracket, Linear Actuator Mounting Bracket, Linear Actuator Accessories

Overview
Specifications

The BRK-01-U U-Shaped Mounting Bracket mounts the front or rear end of PA-01, PA-01-HALL, PA-14 and PA-14P actuators. Its U-shaped design allows 180° of movement, so the actuator can follow the arc of hinged lids, hatches and levers.

The BRK-01-U is made from galvanized cold-rolled steel. Pins and hardware are carbon steel. It weighs 0.25 lbs. The kit includes 1x Mounting Bracket, 1x Cotter Pin, 1x Clevis Pin.

Attach the BRK-01-U to your application surface, align the actuator mounting hole with the bracket and secure it with the included clevis pin and cotter pin. Brackets are sold individually; most installations use one bracket at each end of the actuator.

COMPATIBLE ACCESSORIES:

The BRK-01-U U-Shaped Mounting Bracket is designed for use with the PA-01, PA-01 Hall Effect, PA-14 and PA-14P linear actuators.

BRK-01-U, BRK-01-U Mounting Bracket, U-Shaped Mounting Bracket, Mounting Bracket, PA-01 Bracket, PA-01 Hall Effect Bracket, PA-14 Bracket, PA-14P Bracket, U Bracket, Actuator Mounting Bracket, Clevis Bracket, Linear Actuator Mounting Bracket, Linear Actuator Accessories

Compatibility Chart

Product Specifications
Material TypeGalvanized Cold-Rolled Steel
Actuator ModelPA-01, PA-14, PA-14P
Kit Includes1x Mounting Bracket, 1x Cotter Pin, 1x Clevis Pin
Hardware MaterialCarbon Steel
Unit Weight0.25 lbs
Brackets Compatibility
