Low-Profile Mounting Bracket Set for PA-01, PA-14 and PA-14P

Low-Profile Mounting Bracket Set for PA-01, PA-14 and PA-14P

SKU: BRK-22

Out of stock
Back in stock soon
Prix habituel $16.99 USD
Prix habituel Prix promotionnel $16.99 USD
En vente Épuisé
  • Linear Actuator Calculator
  • Get Free Actuator Guide
Afficher tous les détails
Description
Specifications

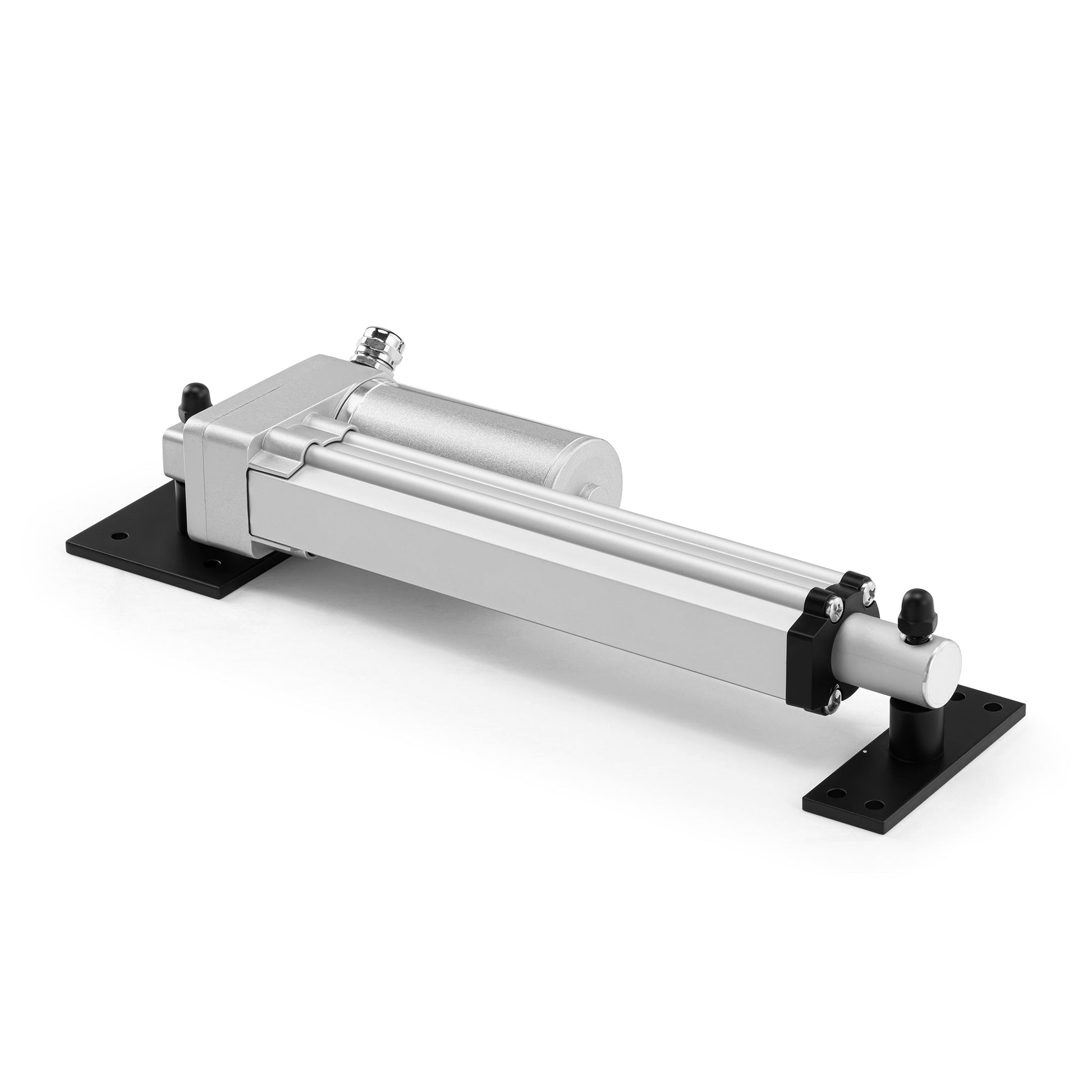

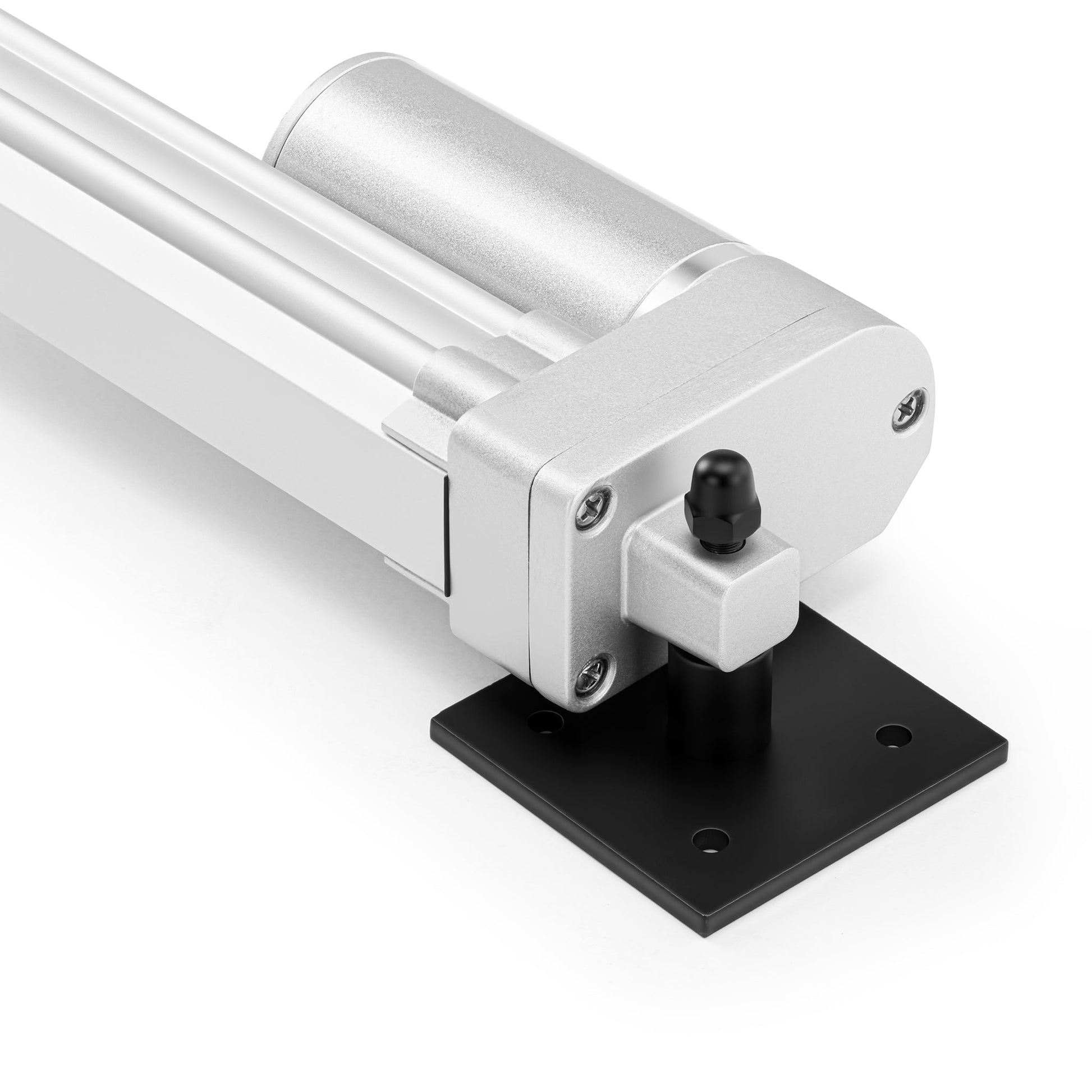

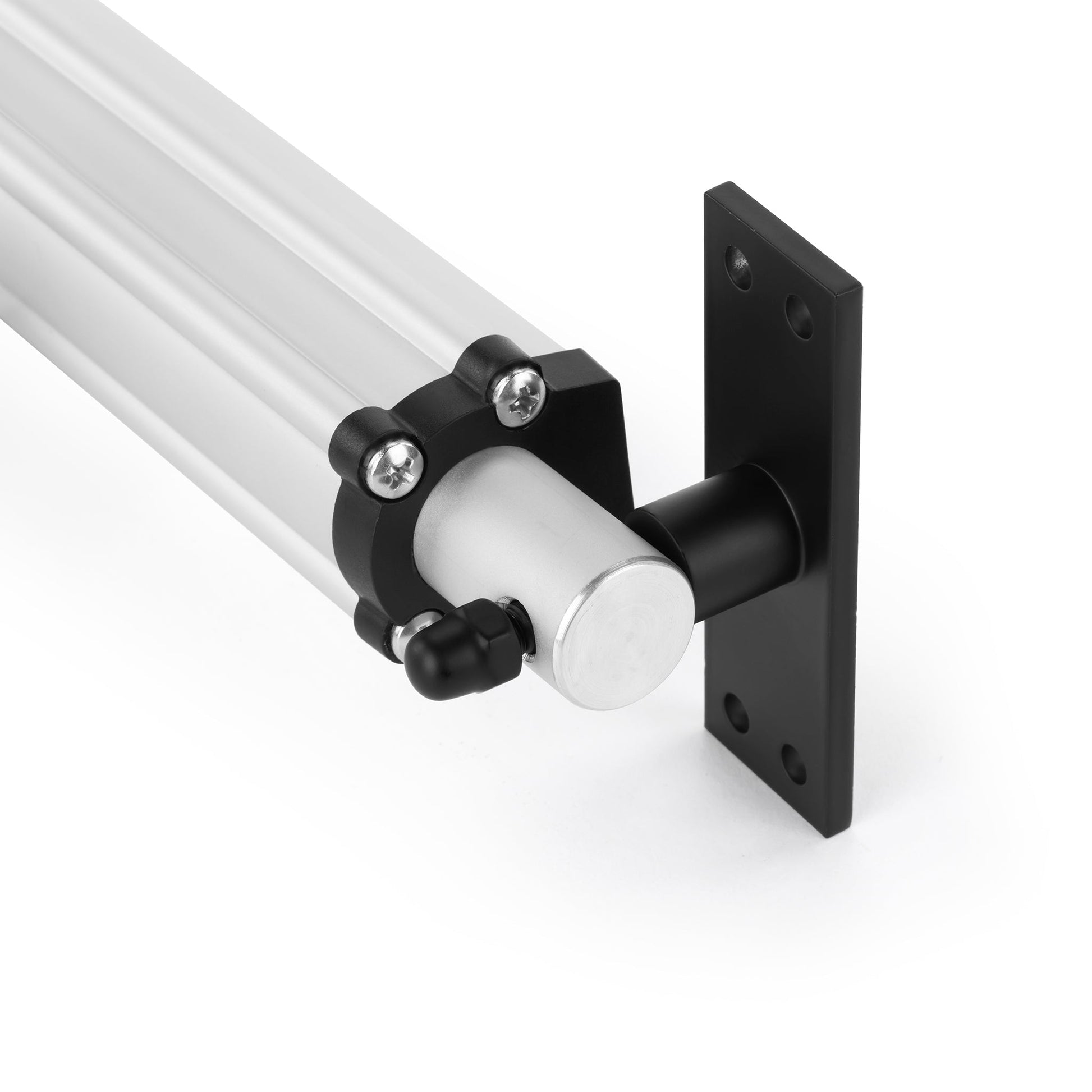

The BRK-22 Low-Profile Mounting Bracket Set mounts both ends of PA-01, PA-14 and PA-14P actuators, including Hall effect models. It allows up to 360° of rotation and keeps the actuator closer to the mounting surface than standard U-brackets, for a cleaner, lower-profile installation.

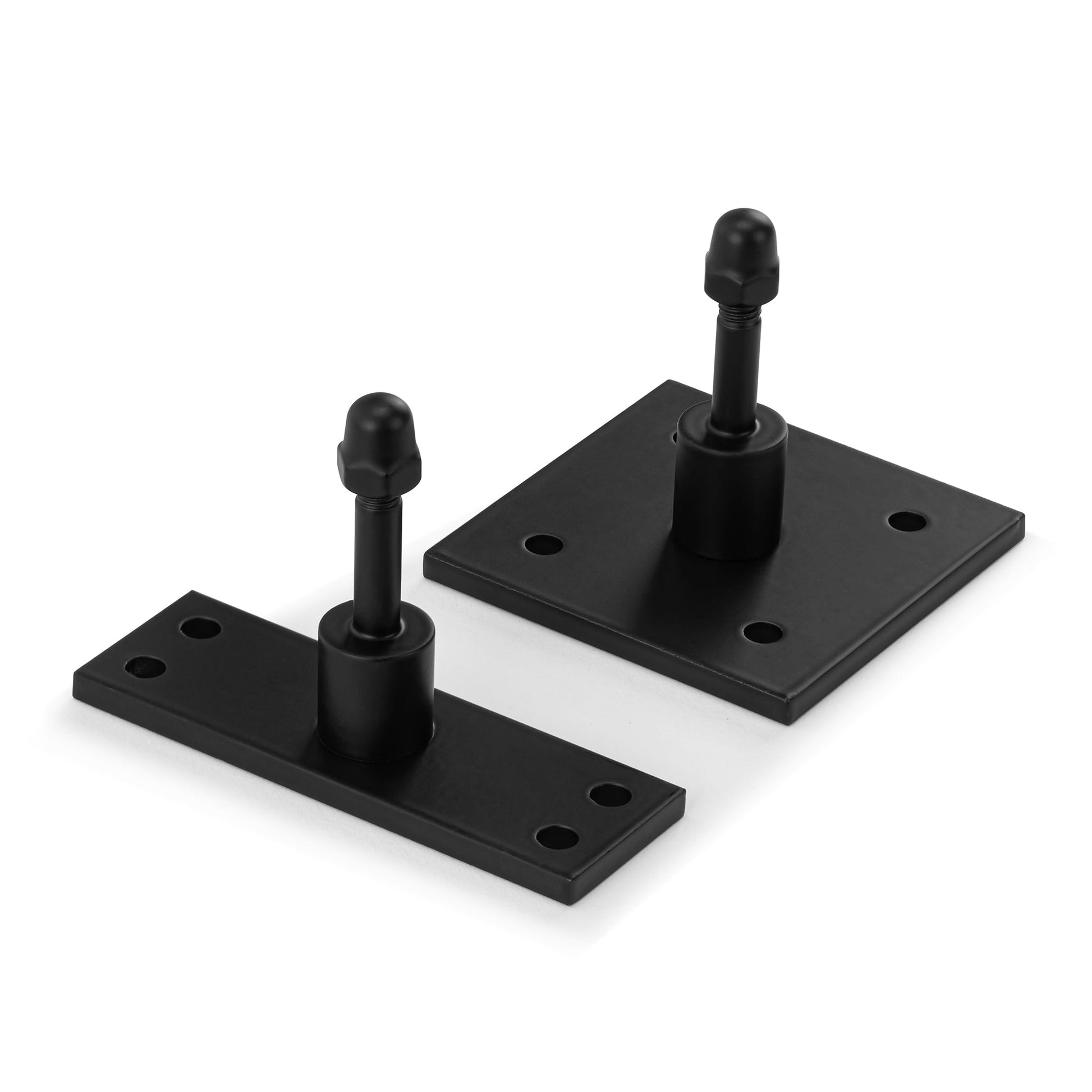

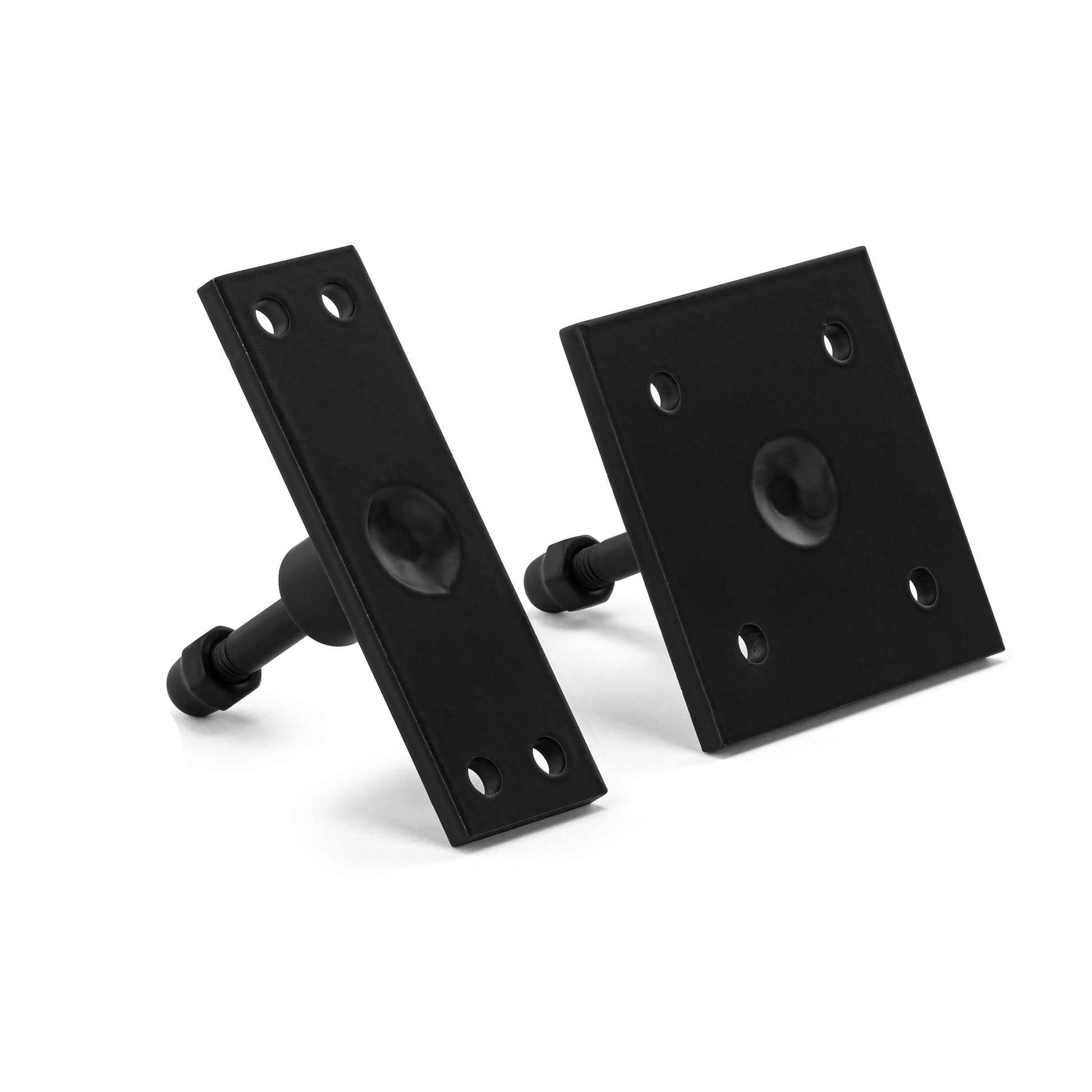

The BRK-22 is made from steel with a matte black powder coat (UV and corrosion resistant). Pins and hardware are steel. It weighs 0.51 lbs. The kit includes 1x Front Mounting Bracket, 1x End Mounting Bracket, 2x Cap Nuts.

Fasten the front and end brackets to your mounting surface, then secure each actuator end with the included cap nuts. The set covers one actuator; confirm clearance for the full stroke before installation.

COMPATIBLE ACCESSORIES:

The BRK-22 Low-Profile Mounting Bracket Set is designed for use with the PA-01, PA-01 Hall Effect, PA-14 and PA-14P linear actuators.

BRK-22, BRK-22 Mounting Bracket Set, Low-Profile Mounting Bracket Set, Mounting Bracket Set, PA-01 Bracket, PA-01 Hall Effect Bracket, PA-14 Bracket, PA-14P Bracket, Low Profile Actuator Bracket, 360 Degree Bracket, Actuator Bracket Set, Mounting Bracket, Linear Actuator Mounting Bracket, Linear Actuator Accessories

Overview
Specifications

The BRK-22 Low-Profile Mounting Bracket Set mounts both ends of PA-01, PA-14 and PA-14P actuators, including Hall effect models. It allows up to 360° of rotation and keeps the actuator closer to the mounting surface than standard U-brackets, for a cleaner, lower-profile installation.

The BRK-22 is made from steel with a matte black powder coat (UV and corrosion resistant). Pins and hardware are steel. It weighs 0.51 lbs. The kit includes 1x Front Mounting Bracket, 1x End Mounting Bracket, 2x Cap Nuts.

Fasten the front and end brackets to your mounting surface, then secure each actuator end with the included cap nuts. The set covers one actuator; confirm clearance for the full stroke before installation.

COMPATIBLE ACCESSORIES:

The BRK-22 Low-Profile Mounting Bracket Set is designed for use with the PA-01, PA-01 Hall Effect, PA-14 and PA-14P linear actuators.

BRK-22, BRK-22 Mounting Bracket Set, Low-Profile Mounting Bracket Set, Mounting Bracket Set, PA-01 Bracket, PA-01 Hall Effect Bracket, PA-14 Bracket, PA-14P Bracket, Low Profile Actuator Bracket, 360 Degree Bracket, Actuator Bracket Set, Mounting Bracket, Linear Actuator Mounting Bracket, Linear Actuator Accessories

Compatibility Chart

Product Specifications
Material TypeSteel
Actuator ModelPA-01, PA-01-HALL, PA-14, PA-14P
Kit Includes1x Front Mounting Bracket, 1x End Mounting Bracket, 2x Cap Nuts
Hardware MaterialSteel
Unit Weight0.51 lbs
Brackets Compatibility
