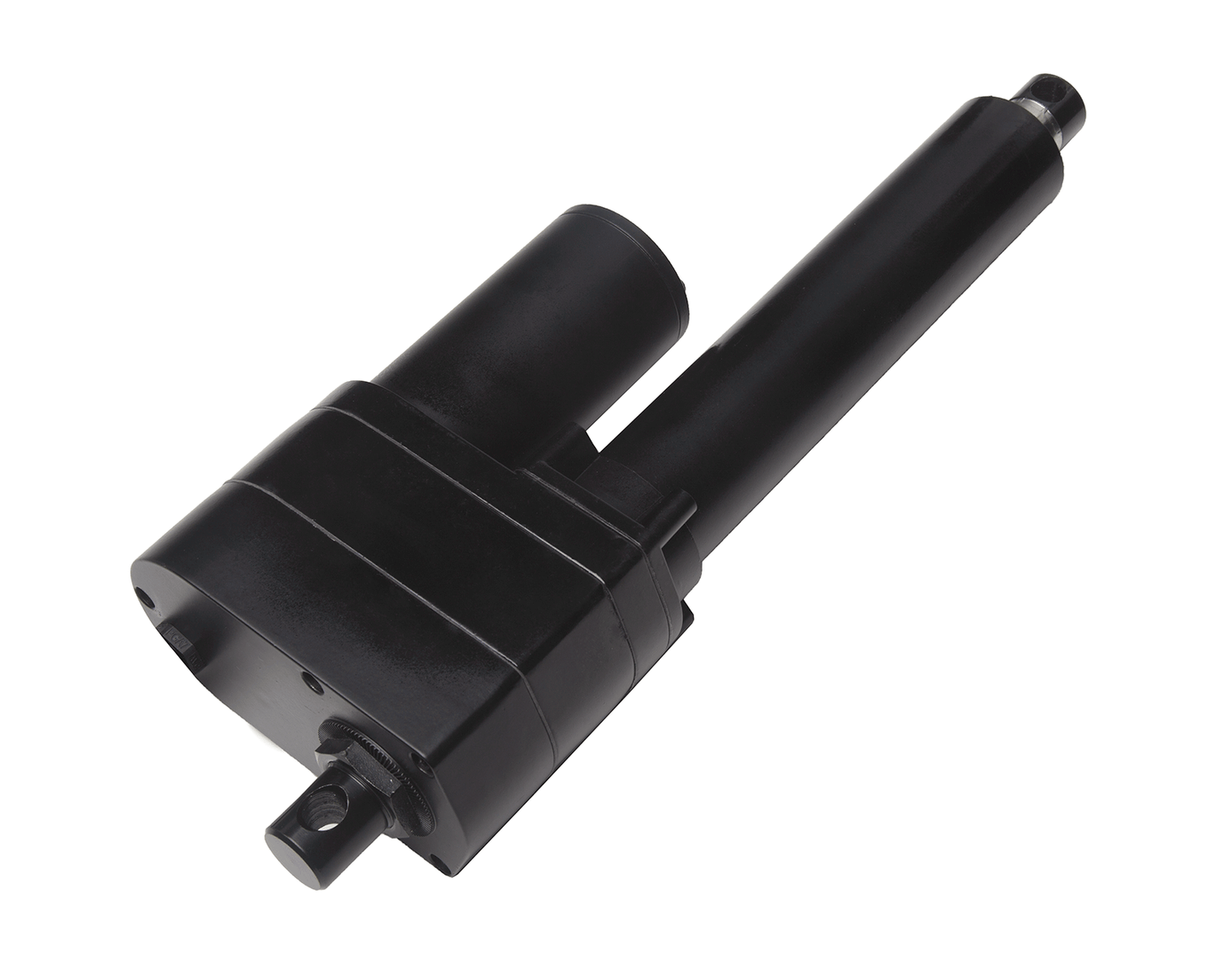

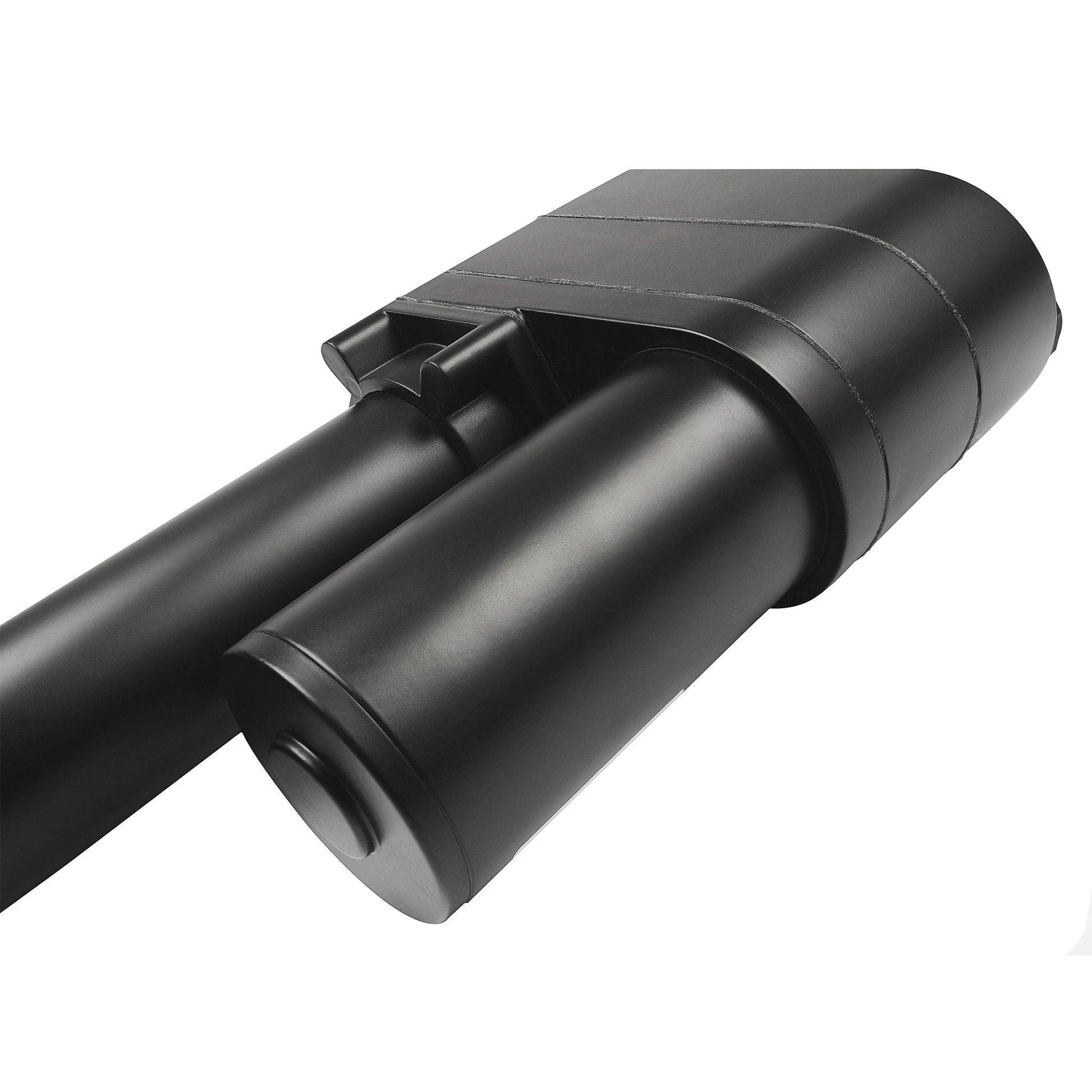

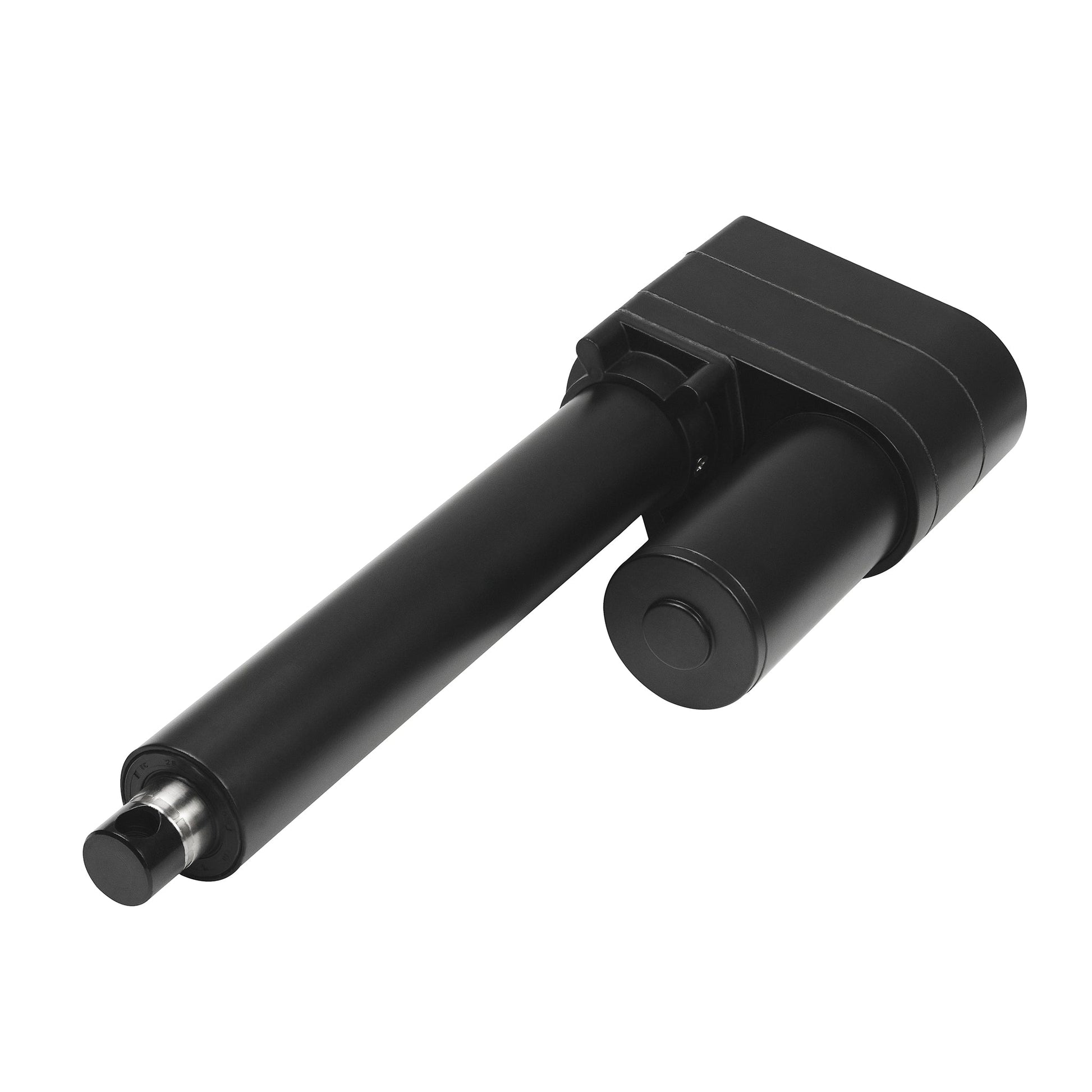

Feedback Heavy Duty Linear Actuator
Feedback Heavy Duty Linear Actuator
Model: PA-17-4-2000-POT
Couldn't load pickup availability

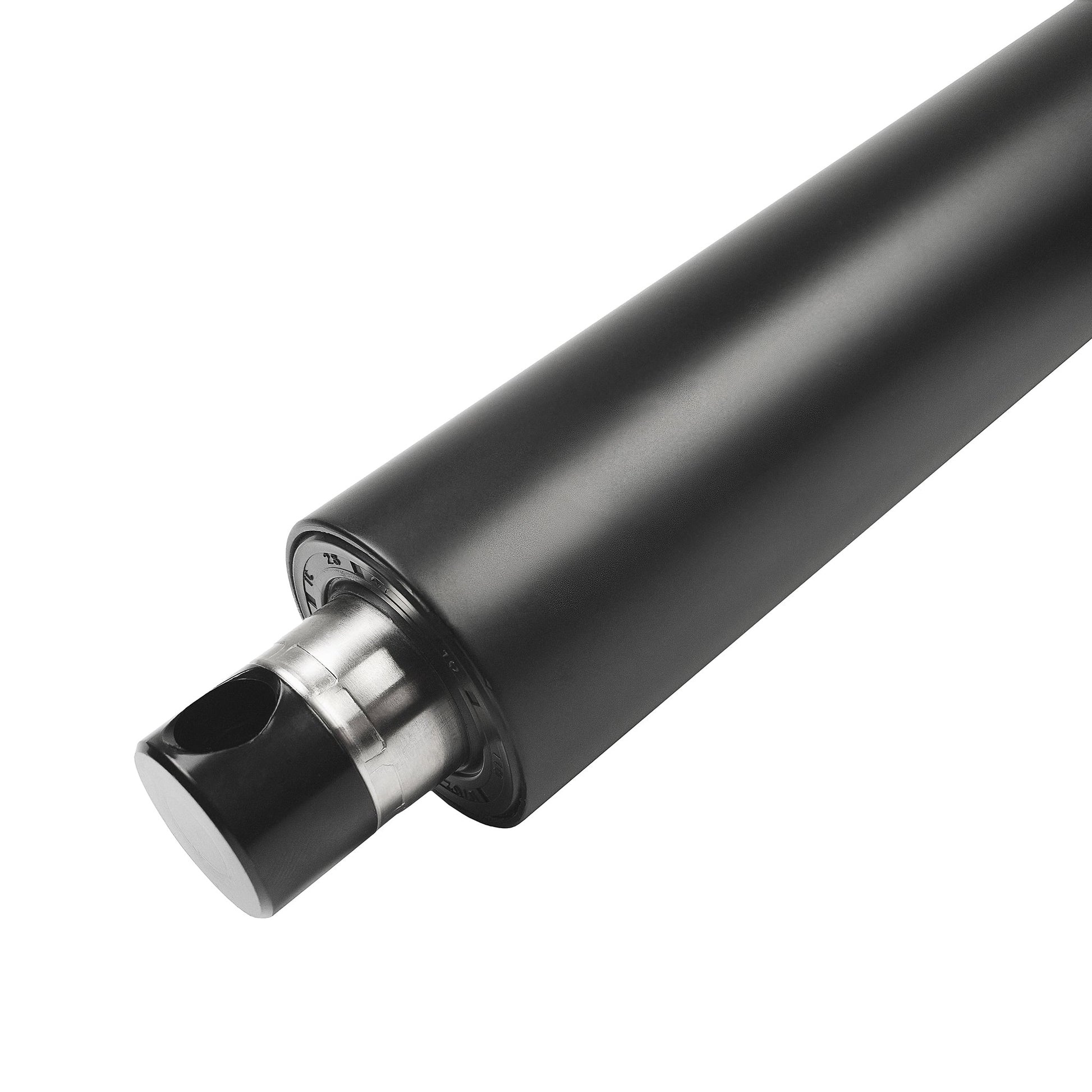

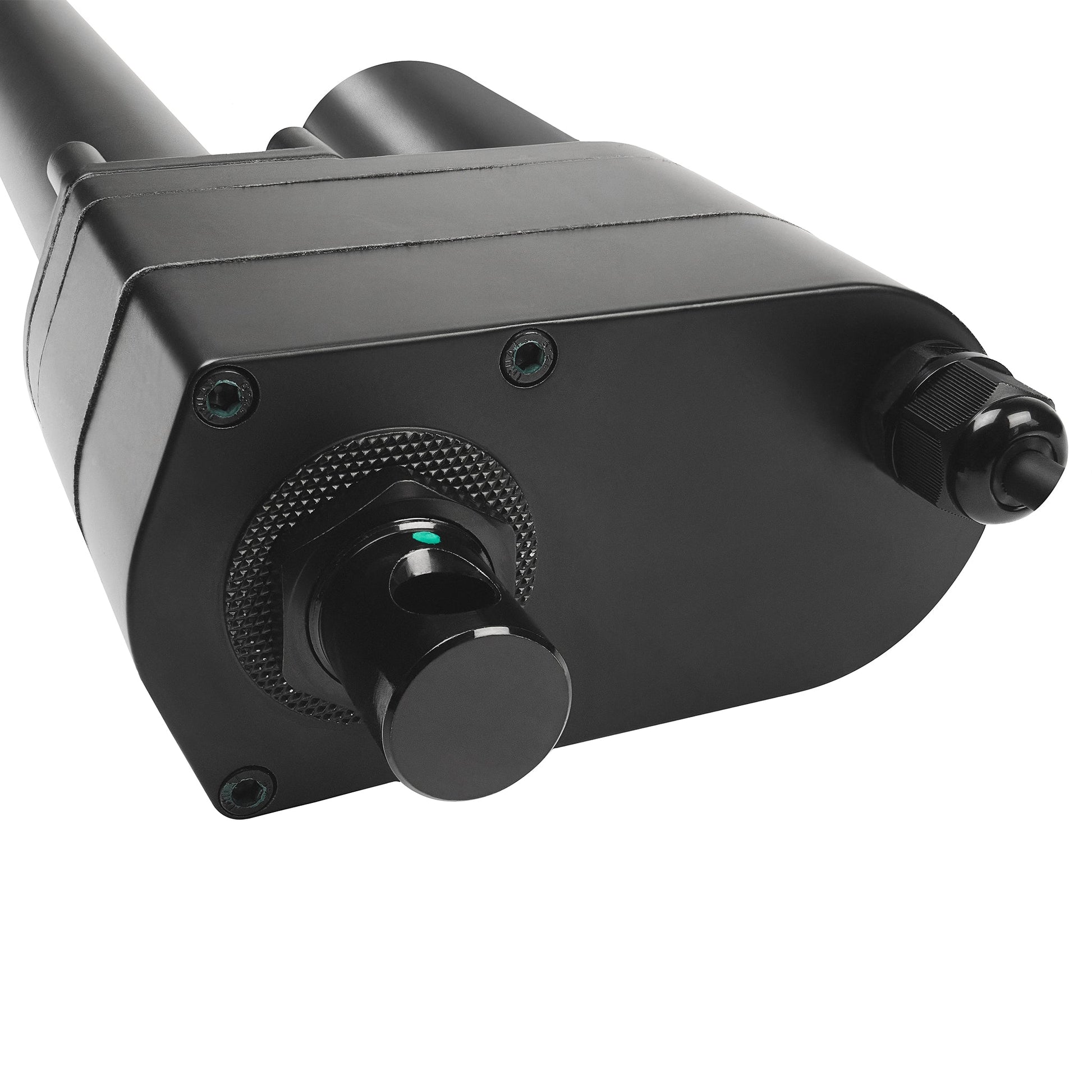

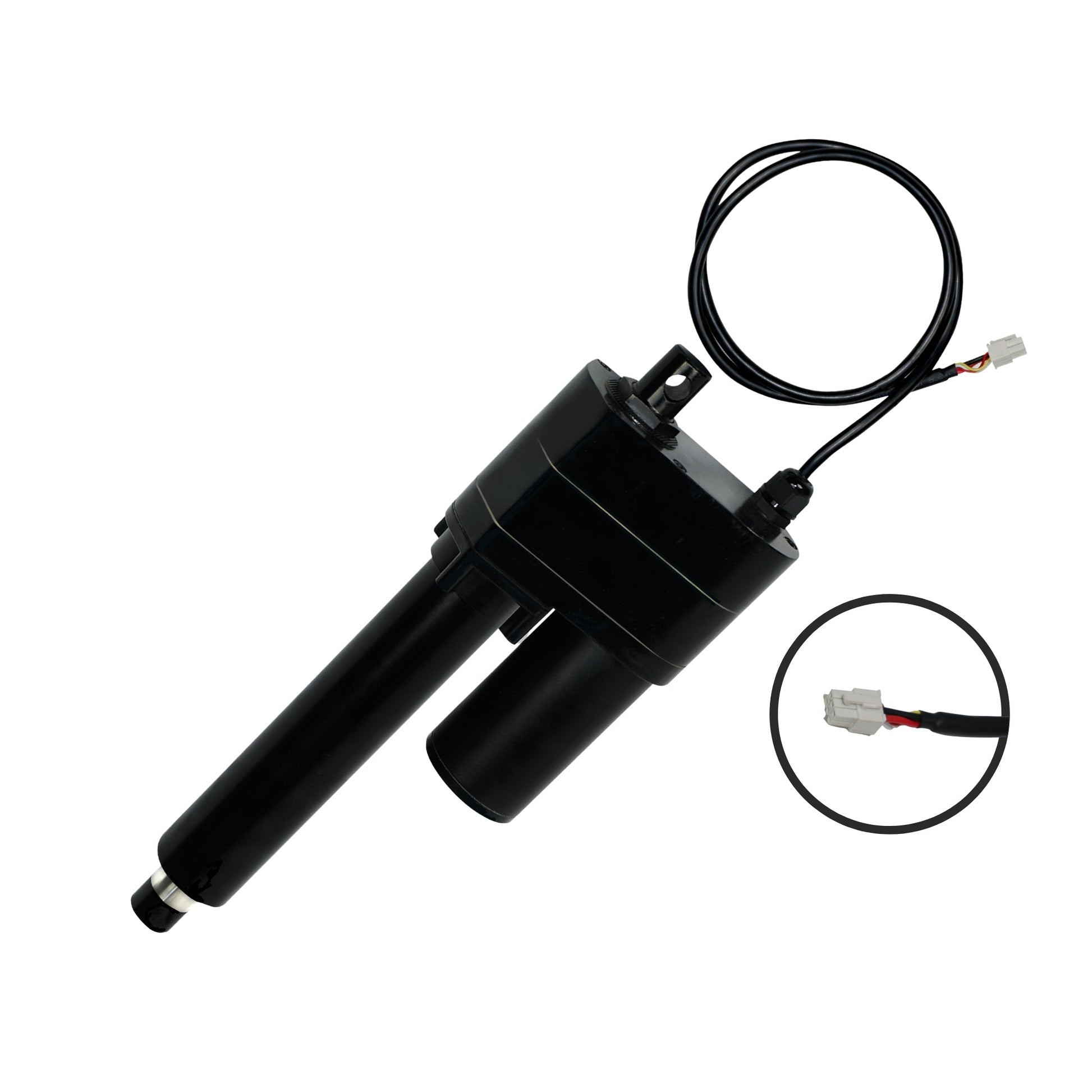

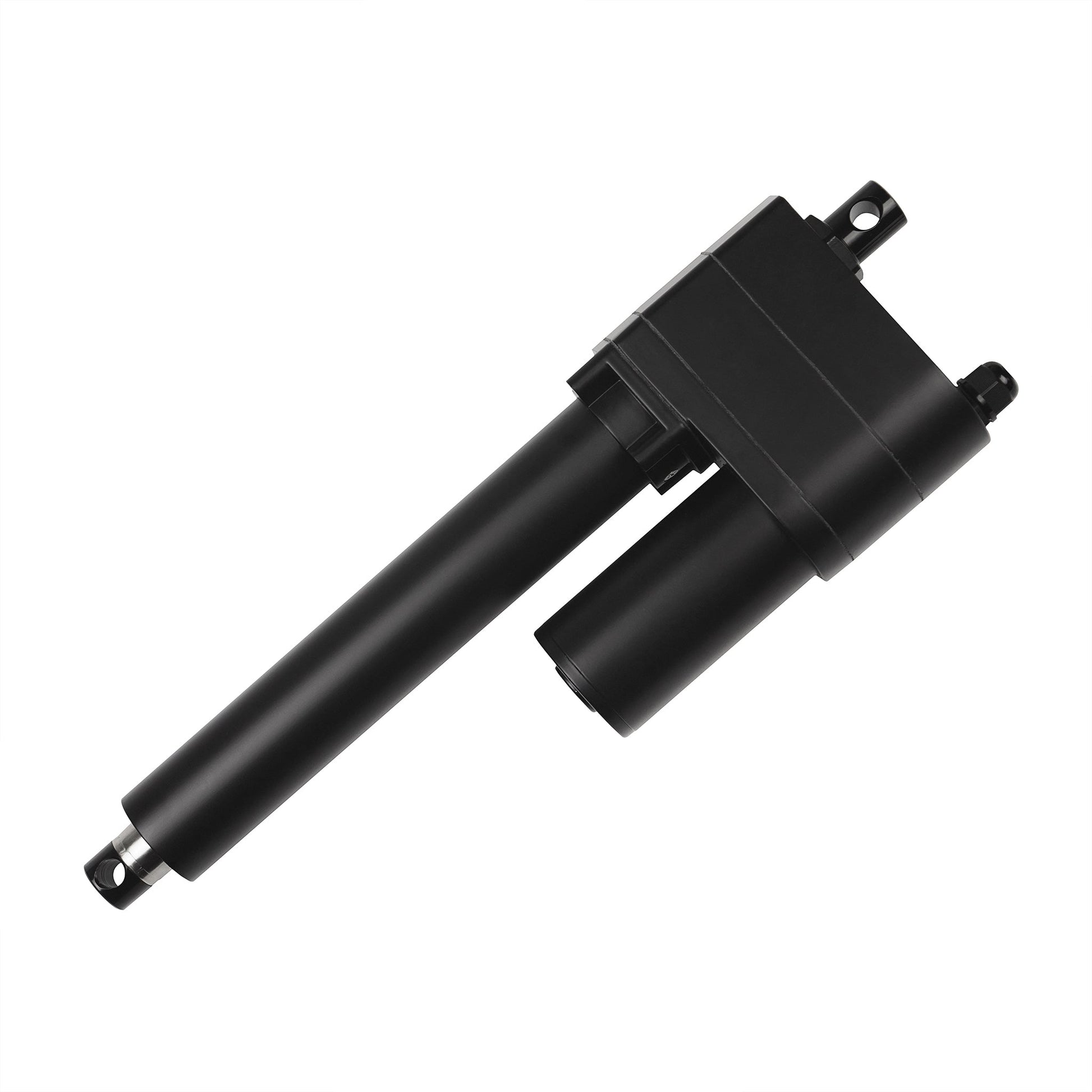

The PA-17-POT Heavy Duty Linear Actuator with Potentiometer Feedback is designed for applications that require high force, durable construction, and position feedback. Its stainless steel shaft and metal gears deliver up to 2,000 lbs of push and pull force and up to 4,000 lbs of static holding force, while its environmental protection rating helps support operation in demanding conditions exposed to dust and water. Adjustable limit switches allow users to define custom start and stop positions on supported stroke lengths, while the integrated potentiometer provides positional feedback when paired with a compatible control system. If potentiometer feedback is not required, the standard PA-17 Heavy Duty Linear Actuator is also available.

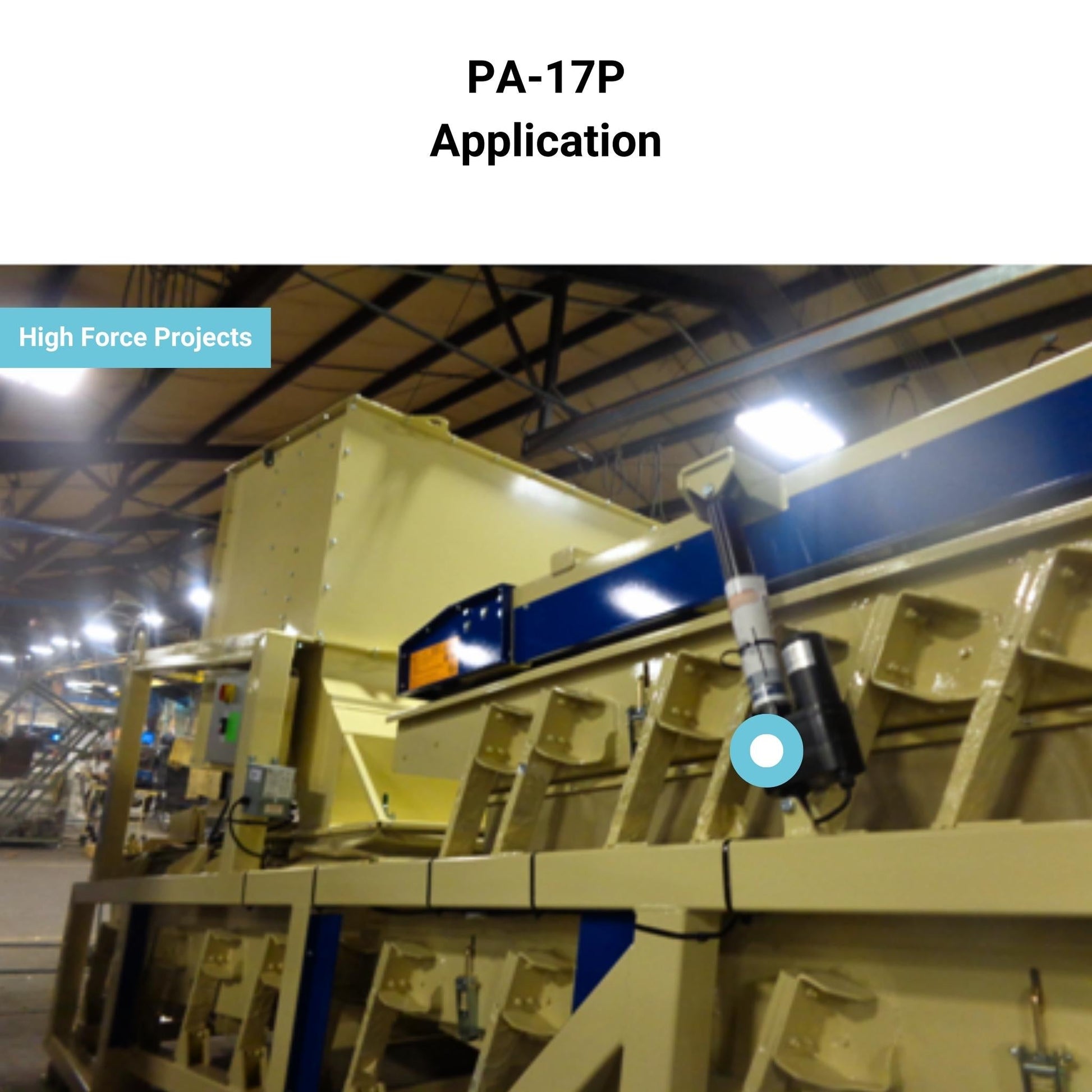

The PA-17-POT combines heavy-duty force capabilities with potentiometer position feedback for demanding automation applications. With up to 2,000 lbs of dynamic push and pull force and up to 4,000 lbs of static holding force, this feedback heavy duty linear actuator is well suited for manufacturing, renewable energy, agriculture, and industrial automation.

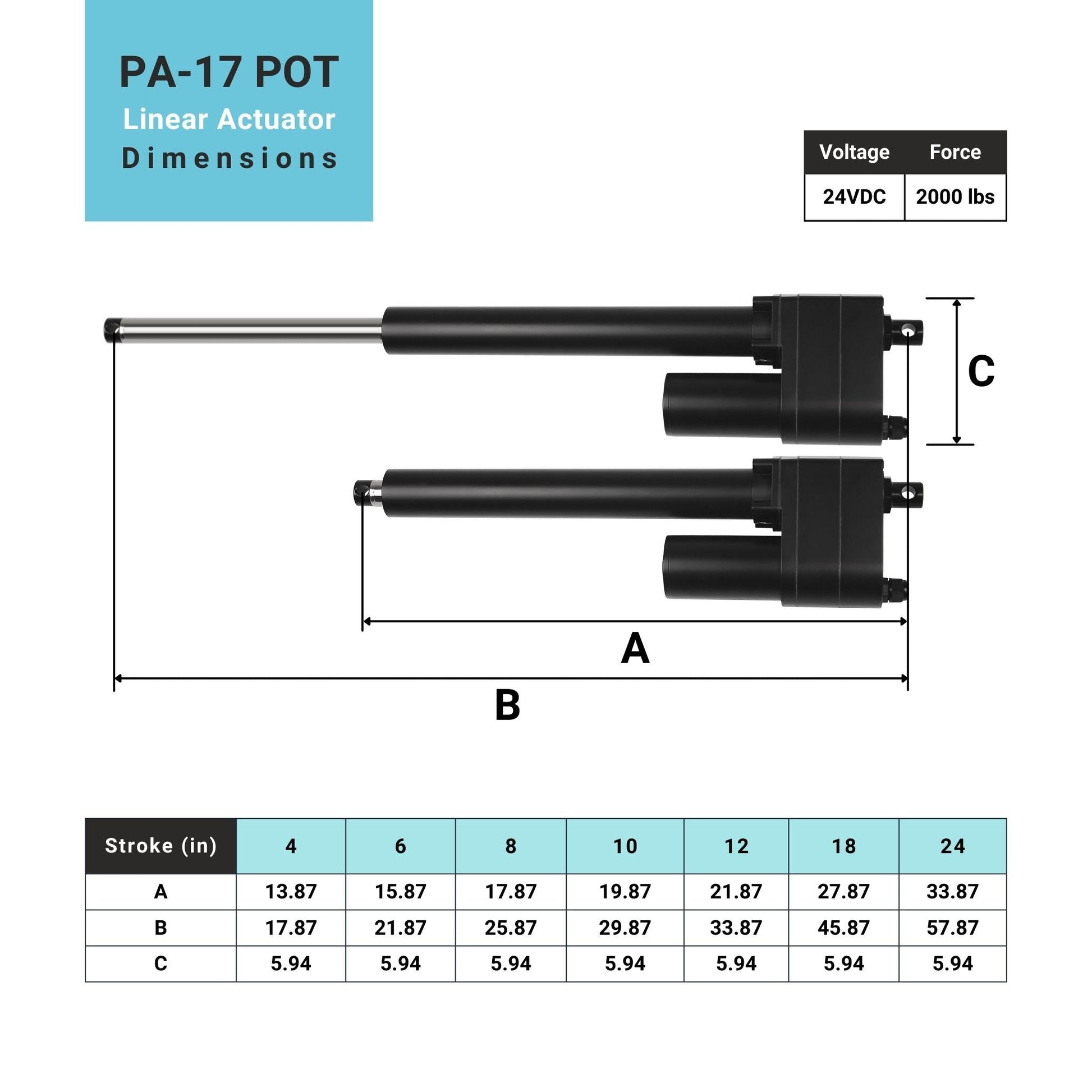

Actuators Comparison ChartThe PA-17-POT Heavy Duty Linear Actuator is designed for integration into systems where high force, adjustable stroke control, and position feedback are important. Its stainless steel shaft, metal gears, adjustable limit switches, and integrated potentiometer support dependable operation and position-aware motion in demanding applications. Refer to the Product Specifications table for dimensions, duty cycle, environmental rating, connector type, feedback type, materials, stroke options, and other technical specifications.
Complete your PA-17-POT Heavy Duty Linear Actuator system with compatible mounting and control components. Due to its high current draw and potentiometer feedback, selecting appropriately rated components is important for reliable operation.
MOUNTING BRACKETS:
The PA-17-POT is compatible with the BRK-17 mounting bracket, designed for Heavy Duty and High Force Industrial Actuators. Refer to the corresponding product page for additional specifications and installation information.
CONTROL SYSTEMS:
The PA-17-POT is compatible with Progressive Automations controllers rated for 20 A or higher and capable of supporting the selected potentiometer feedback configuration. Due to the actuator's high current draw, relays or additional electrical components may be required depending on the control system and application. Refer to the compatibility tables to select the appropriate controller, or visit our control systems page for additional options.
*The PA-17-POT includes potentiometer feedback for reading positional information while operating under heavy loads. For additional compatibility or integration support, please contact sales@progressiveautomations.com.
Custom options
Looking for an actuator but the specifications don't exactly match what you require? We have an extensive list of customization capabilities to ensure you get exactly what you need for your project. Download this product's data sheet and find out more about your customization options!
The PA-17-POT Heavy Duty Linear Actuator with Potentiometer Feedback is designed for applications that require high force, durable construction, and position feedback. Its stainless steel shaft and metal gears deliver up to 2,000 lbs of push and pull force and up to 4,000 lbs of static holding force, while its environmental protection rating helps support operation in demanding conditions exposed to dust and water. Adjustable limit switches allow users to define custom start and stop positions on supported stroke lengths, while the integrated potentiometer provides positional feedback when paired with a compatible control system. If potentiometer feedback is not required, the standard PA-17 Heavy Duty Linear Actuator is also available.
The PA-17-POT combines heavy-duty force capabilities with potentiometer position feedback for demanding automation applications. With up to 2,000 lbs of dynamic push and pull force and up to 4,000 lbs of static holding force, this feedback heavy duty linear actuator is well suited for manufacturing, renewable energy, agriculture, and industrial automation.
Actuators Comparison ChartThe PA-17-POT Heavy Duty Linear Actuator is designed for integration into systems where high force, adjustable stroke control, and position feedback are important. Its stainless steel shaft, metal gears, adjustable limit switches, and integrated potentiometer support dependable operation and position-aware motion in demanding applications. Refer to the Product Specifications table for dimensions, duty cycle, environmental rating, connector type, feedback type, materials, stroke options, and other technical specifications.
Complete your PA-17-POT Heavy Duty Linear Actuator system with compatible mounting and control components. Due to its high current draw and potentiometer feedback, selecting appropriately rated components is important for reliable operation.
MOUNTING BRACKETS:
The PA-17-POT is compatible with the BRK-17 mounting bracket, designed for Heavy Duty and High Force Industrial Actuators. Refer to the corresponding product page for additional specifications and installation information.
CONTROL SYSTEMS:
The PA-17-POT is compatible with Progressive Automations controllers rated for 20 A or higher and capable of supporting the selected potentiometer feedback configuration. Due to the actuator's high current draw, relays or additional electrical components may be required depending on the control system and application. Refer to the compatibility tables to select the appropriate controller, or visit our control systems page for additional options.
*The PA-17-POT includes potentiometer feedback for reading positional information while operating under heavy loads. For additional compatibility or integration support, please contact sales@progressiveautomations.com.
Custom options
Looking for an actuator but the specifications don't exactly match what you require? We have an extensive list of customization capabilities to ensure you get exactly what you need for your project. Download this product's data sheet and find out more about your customization options!
Depending on your application, there are different specification requirements you should consider when determining the linear actuator you need. These requirements include force, stroke, speed and mounting dimensions. For detailed actuator information, you can refer to either the datasheet or the specification table located on the selected actuator's product page. You can also contact us to speak with one of our expert engineers.
Duty cycle is the fraction of the working period in which a linear actuator can remain active. You can calculate the duty cycle of a linear actuator by using the following equation: Duty cycle (%) = (Time the linear actuator is active) / (Time for one working period)
For example: With a 25% duty cycle, an actuator can run for 5 minutes continuously before needing to rest for 15 minutes before operating.
Stroke is the travel distance of the extending rod. To find the stroke length you require, measure your application from the fully retracted position to the fully extended position. The difference will equal the stroke length you require.
We always recommend purchasing an actuator with a higher force rating than what the application requires. If unsure of your force requirements, this article may help you calculate this: How to Calculate Force to Find the Right Linear Actuator
Yes, this is possible. However, it does depend on the units you are currently using. To synchronize actuators, they require a form of feedback such as a potentiometer or hall effect sensors. For more information, see below some of our key content regarding linear actuator synchronization.
The control box you choose should be able to provide sufficient voltage and current rating to your actuator. If you are unsure of the specifications, please contact us.
Alternatively, you can also find compatible control boxes on your selected linear actuator's product page.
Backdriving is when an actuator starts sliding down under load, when it is either overloaded or when the actuator has been damaged. Watch the video.
What Does Dynamic and Static Load Ratings Mean?Dynamic load rating is the amount of weight an actuator can pull or push safely when being powered. Static load rating is the amount of weight the actuator can hold or withstand without back driving when it is not being powered. For example, let's just say you have an actuator installed on a window and the static load rating of the actuator is 100lbs, it could experience backdriving when there is a high wind event, which means there will be more pressure exerted on the actuator which would exceed the 100lbs load rating of the actuator.
What Is Lateral Loading?Lateral loading is when the actuator experiences forces from the lateral plane. Actuators are not meant to handle lateral forces at all so if it experiences any lateral forces, it will likely damage the actuator or bend the rod. So it's advised never to use lateral forces and always make sure the actuator is fully in line or in sync with your application, so it does not take any load other than the axial load. Watch the video.
