Heavy Duty Linear Actuator
Heavy Duty Linear Actuator
Model: PA-17
Couldn't load pickup availability

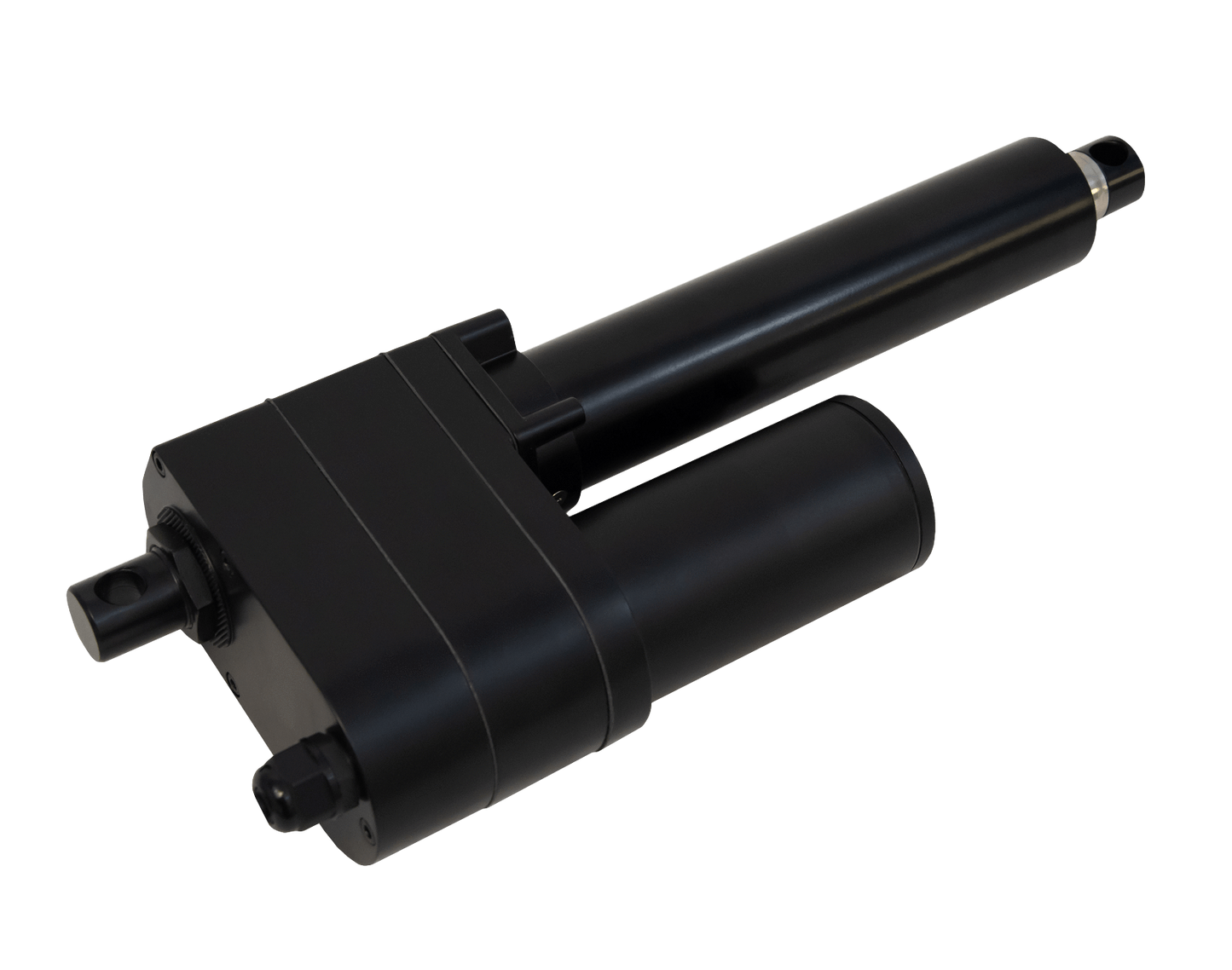

The PA-17 Heavy Duty Linear Actuator provides cost-effective high force capabilities. The stainless steel shaft accompanied by metal gears allows it to push and pull up to 2000 lbs, and hold up to 4000 lbs. The environmental protection rating provides a versatile unit able to withstand dust, water, and harsh environments. The heavy-duty actuator is the only unit in our line of products with adjustable limit switches. This feature allows the user full control over where to start and stop the actuator. We also have this model available with potentiometer feedback here!
This unit can be found in industries such as manufacturing, agriculture, and industrial automation. For a full list of specifications, customization options, and dimensional drawings, please see our PA-17 Data Sheet.
Note: limit switches are not included in stroke lengths longer than 24".
MOUNTING OPTIONS:
The BRK-17 bracket, designed for the Heavy Duty Linear Actuator, allows for a simple installation process. For more detailed information and specifications, please see our brackets product page.
CONTROL SYSTEMS:
The heavy-duty electric actuator is compatible with a variety of our control boxes. With each control box comes a wide range of control options useful for whatever project you have in mind, as well as a very simple wiring process. Take a look at our control systems page for a full list of options.
*Please note that the PA-17 is not rated for shock or pulse loads.
Actuators Comparison Chart Browse More ActuatorsCustom options
Looking for an actuator but the specifications don't exactly match what you require? We have an extensive list of customization capabilities to ensure you get exactly what you need for your project. Download this product's data sheet and find out more about your customization options!
The PA-17 Heavy Duty Linear Actuator provides cost-effective high force capabilities. The stainless steel shaft accompanied by metal gears allows it to push and pull up to 2000 lbs, and hold up to 4000 lbs. The environmental protection rating provides a versatile unit able to withstand dust, water, and harsh environments. The heavy-duty actuator is the only unit in our line of products with adjustable limit switches. This feature allows the user full control over where to start and stop the actuator. We also have this model available with potentiometer feedback here!
This unit can be found in industries such as manufacturing, agriculture, and industrial automation. For a full list of specifications, customization options, and dimensional drawings, please see our PA-17 Data Sheet.
Note: limit switches are not included in stroke lengths longer than 24".
MOUNTING OPTIONS:
The BRK-17 bracket, designed for the Heavy Duty Linear Actuator, allows for a simple installation process. For more detailed information and specifications, please see our brackets product page.
CONTROL SYSTEMS:
The heavy-duty electric actuator is compatible with a variety of our control boxes. With each control box comes a wide range of control options useful for whatever project you have in mind, as well as a very simple wiring process. Take a look at our control systems page for a full list of options.
*Please note that the PA-17 is not rated for shock or pulse loads.
Actuators Comparison Chart Browse More ActuatorsCustom options
Looking for an actuator but the specifications don't exactly match what you require? We have an extensive list of customization capabilities to ensure you get exactly what you need for your project. Download this product's data sheet and find out more about your customization options!
Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!
Read MoreData Sheets
User Manual
User Manual
2D/3D models
3D Models
Wi-Fi Control of High Current Linear Actuators
This article will show you how to use the PA-35 Wi-Fi control box to control actuators that requi...
Key Considerations for Selecting a Manufacturer for your Motion Control Products
Selecting the right manufacturer for your linear motion products is a crucial part of your design...
Living Large in 170 sq ft - A Luxury Tiny Home Meets Home Automation
Linear actuators have been used in several ways, in different industries, and for various applica...
Depending on your application, there are different specification requirements you should consider when determining the linear actuator you need. These requirements include force, stroke, speed and mounting dimensions. For detailed actuator information, you can refer to either the datasheet or the specification table located on the selected actuator's product page. You can also contact us to speak with one of our expert engineers.
Duty cycle is the fraction of the working period in which a linear actuator can remain active. You can calculate the duty cycle of a linear actuator by using the following equation: Duty cycle (%) = (Time the linear actuator is active) / (Time for one working period)
For example: With a 25% duty cycle, an actuator can run for 5 minutes continuously before needing to rest for 15 minutes before operating.
Stroke is the travel distance of the extending rod. To find the stroke length you require, measure your application from the fully retracted position to the fully extended position. The difference will equal the stroke length you require.
We always recommend purchasing an actuator with a higher force rating than what the application requires. If unsure of your force requirements, this article may help you calculate this: How to Calculate Force to Find the Right Linear Actuator
Yes, this is possible. However, it does depend on the units you are currently using. To synchronize actuators, they require a form of feedback such as a potentiometer or hall effect sensors. For more information, see below some of our key content regarding linear actuator synchronization.
The control box you choose should be able to provide sufficient voltage and current rating to your actuator. If you are unsure of the specifications, please contact us.
Alternatively, you can also find compatible control boxes on your selected linear actuator's product page.
Backdriving is when an actuator starts sliding down under load, when it is either overloaded or when the actuator has been damaged. Watch the video.
What Does Dynamic and Static Load Ratings Mean?Dynamic load rating is the amount of weight an actuator can pull or push safely when being powered. Static load rating is the amount of weight the actuator can hold or withstand without back driving when it is not being powered. For example, let's just say you have an actuator installed on a window and the static load rating of the actuator is 100lbs, it could experience backdriving when there is a high wind event, which means there will be more pressure exerted on the actuator which would exceed the 100lbs load rating of the actuator.
What Is Lateral Loading?Lateral loading is when the actuator experiences forces from the lateral plane. Actuators are not meant to handle lateral forces at all so if it experiences any lateral forces, it will likely damage the actuator or bend the rod. So it's advised never to use lateral forces and always make sure the actuator is fully in line or in sync with your application, so it does not take any load other than the axial load. Watch the video.
