Water-resistant Linear Actuator IP66 - Optional Feedback
Water-resistant Linear Actuator IP66 - Optional Feedback
Modèle: PA-10-2-450-N-12VDC
Impossible de charger les disponibilités de retrait

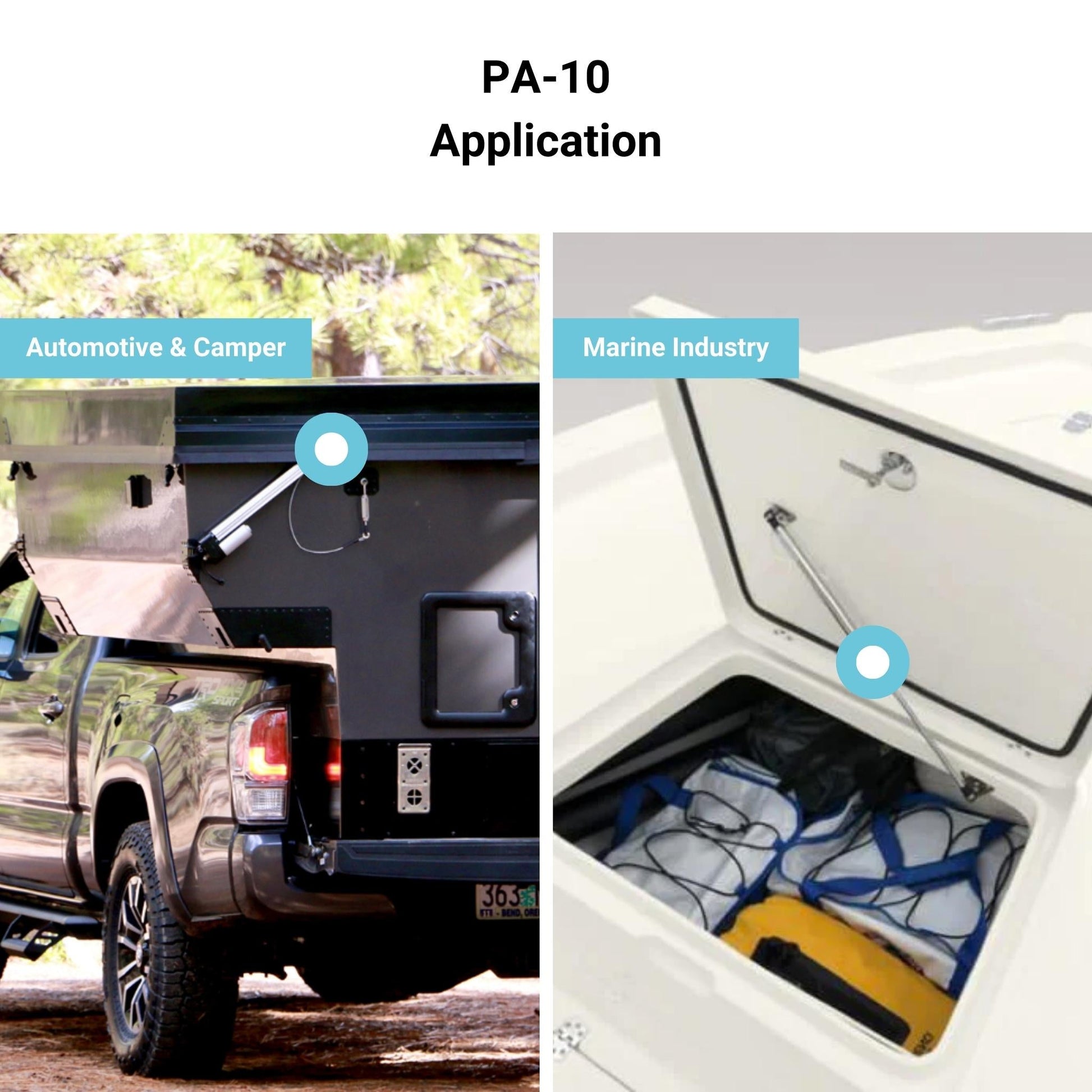

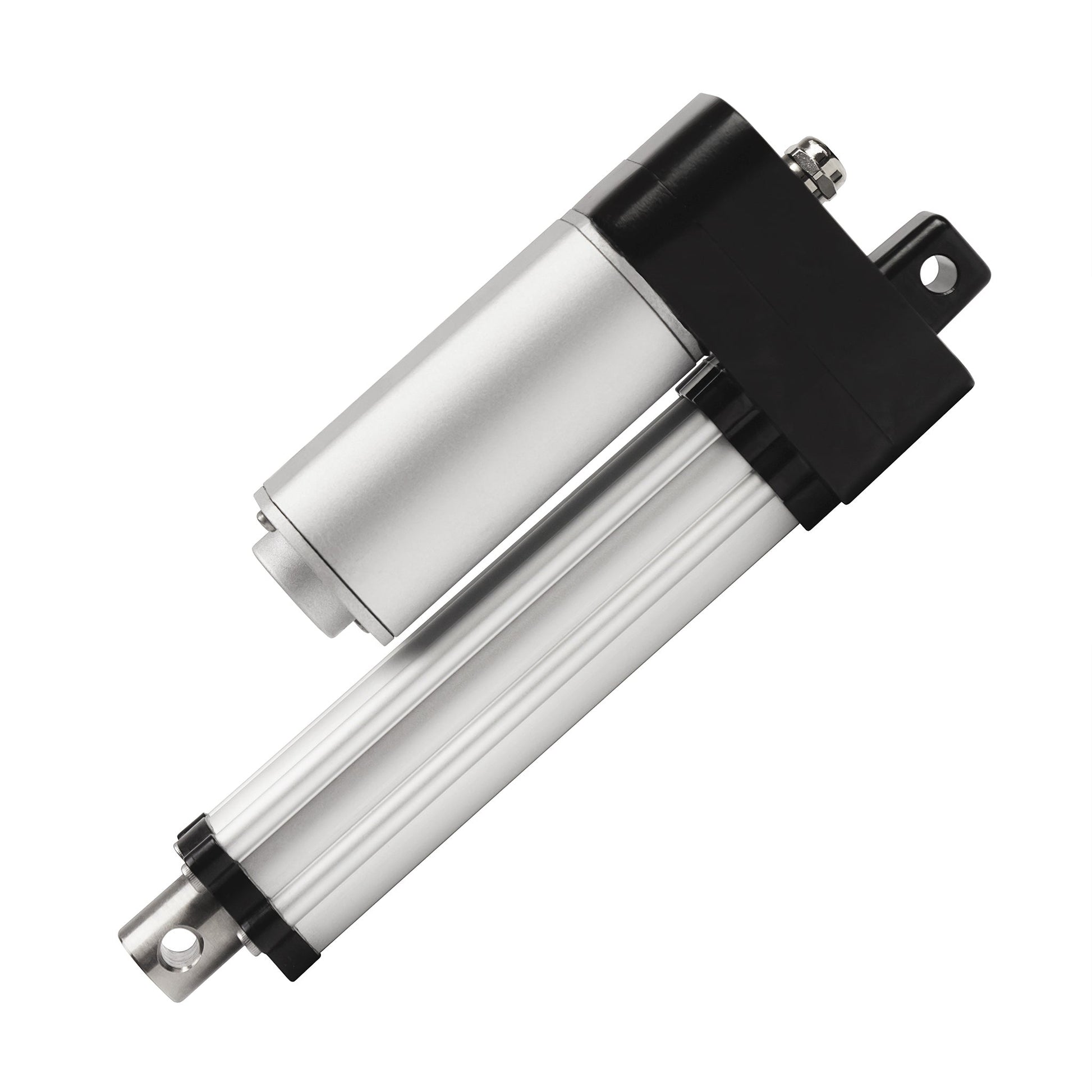

The PA-10 Water-Resistant Electric Linear Actuator is designed for demanding outdoor applications that require compact size, high force, and dependable environmental protection. Its IP66 weather protection rating helps protect against dust and powerful water exposure, making the PA-10 well suited for marine, automotive, and agricultural applications. For applications requiring additional corrosion resistance, the PA-10 is also available in a Salt Spray-rated version with a specialized porcelain-plated housing tested for up to 400 hours of salt spray exposure. For more information about environmental protection ratings, please see our IP Rating Guide.

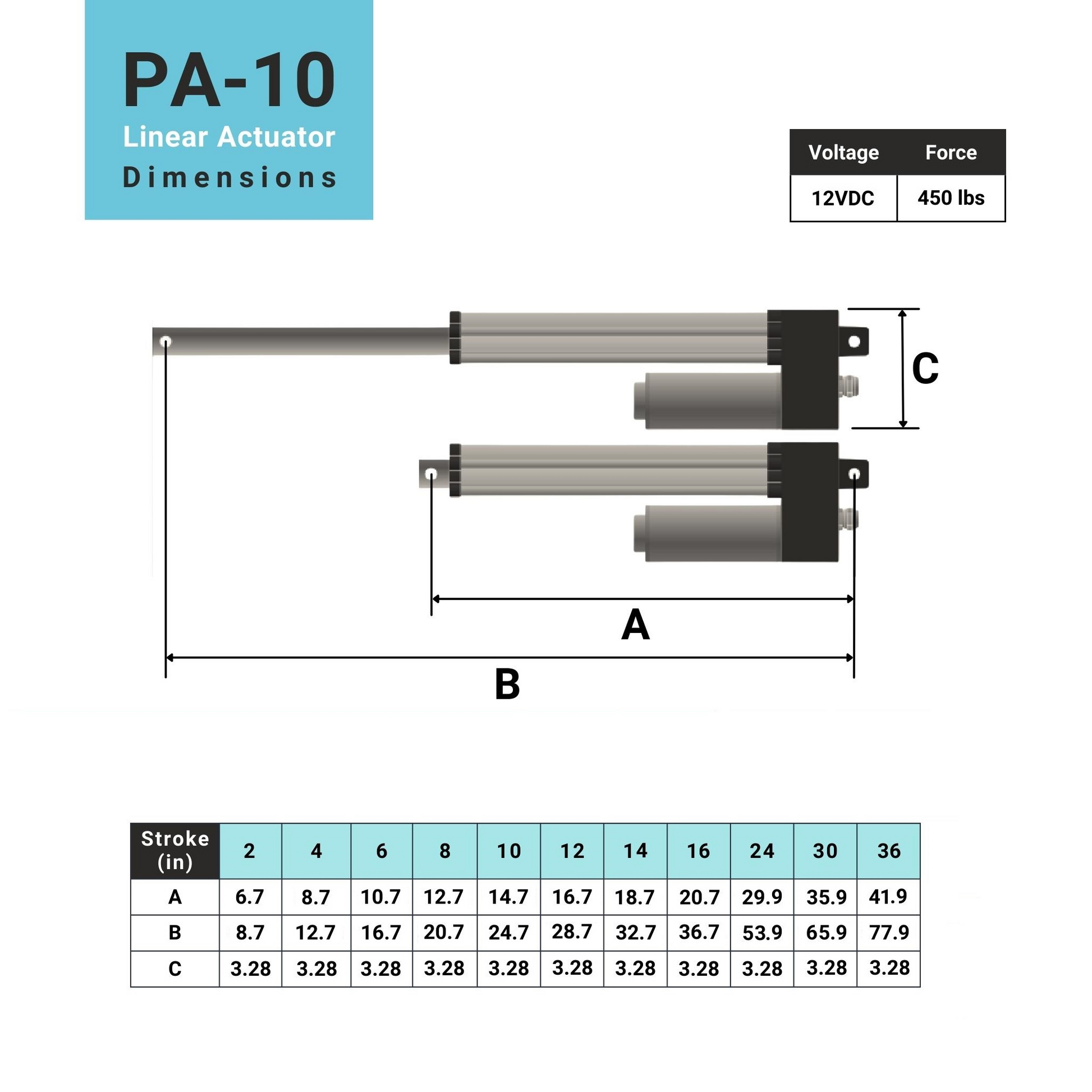

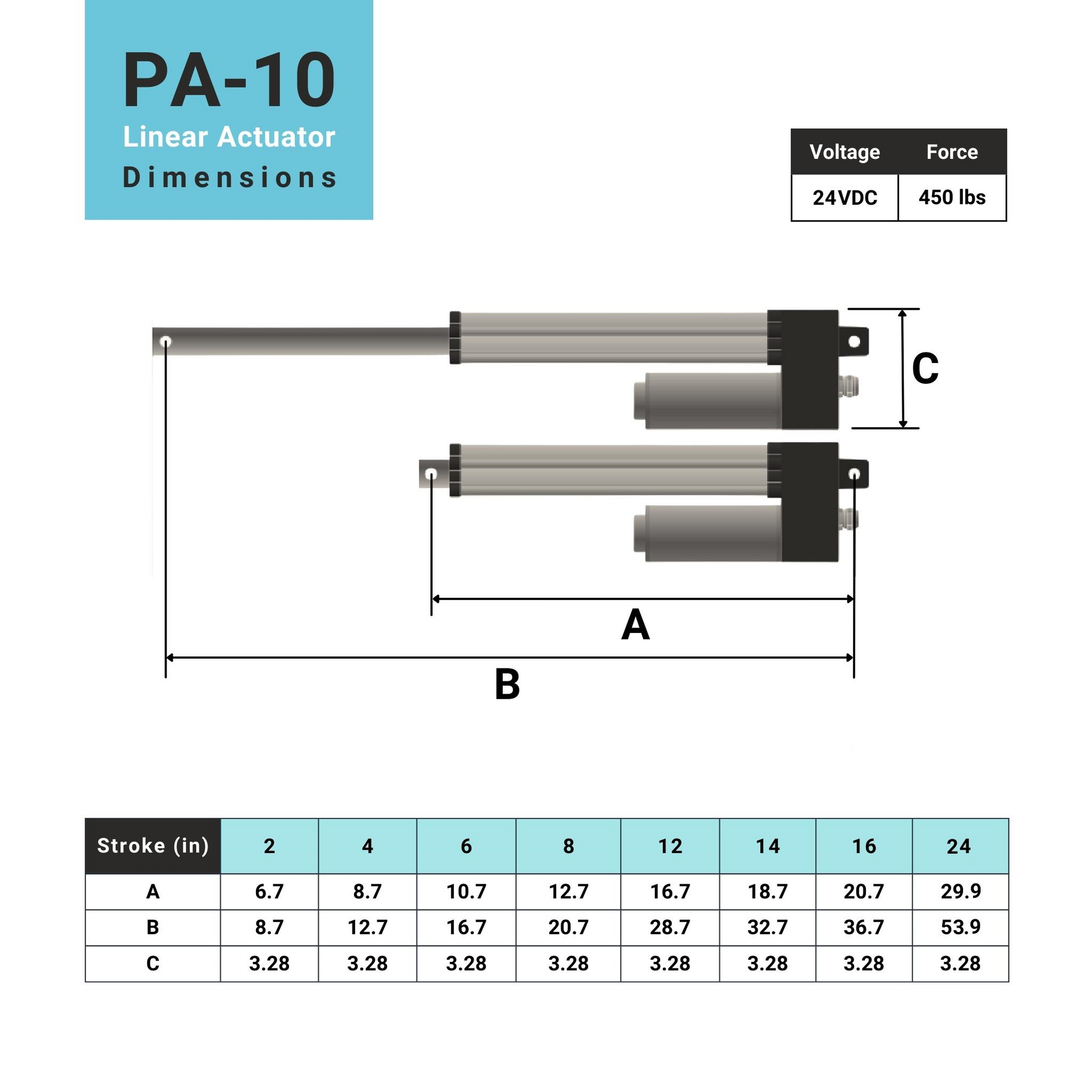

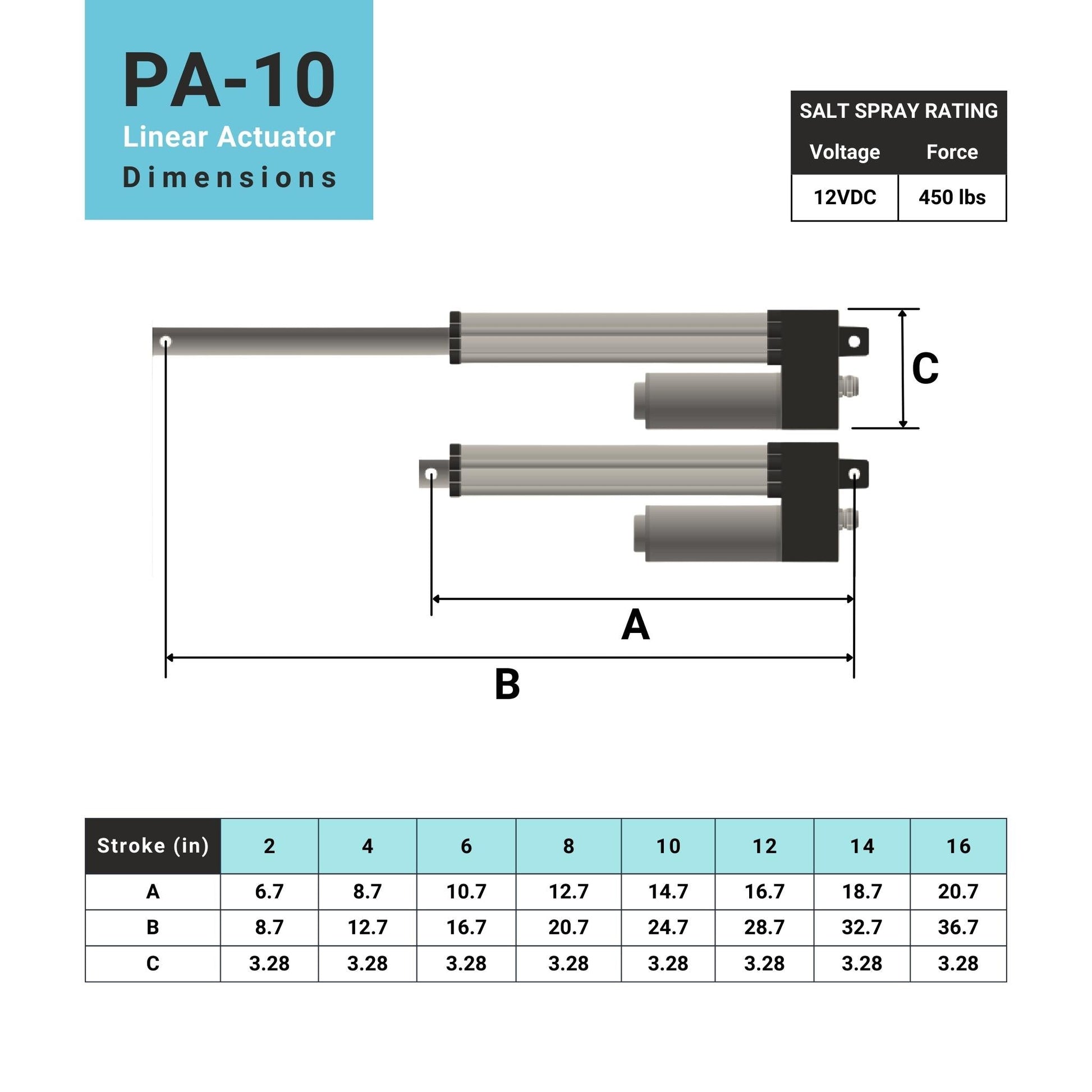

The PA-10 Water-Resistant Electric Linear Actuator combines high-force performance, compact construction, and IP66 protection for automation projects exposed to harsh environments. Its efficient drive system and multiple performance configurations allow you to select the force, speed, and current requirements that best match your application. Refer to the Force, Speed & Current table to compare available configurations. For complete specifications, customization options, and dimensional drawings, please see the PA-10 Data Sheet.
Actuators Comparison ChartThe PA-10 Water-Resistant Electric Linear Actuator is designed for straightforward integration into new and existing systems. Its compact footprint, durable construction, IP66-rated housing, and optional Salt Spray-rated configuration support dependable operation in outdoor and corrosive environments. Refer to the Product Specifications table for dimensions, duty cycle, environmental rating, connector type, materials, and other technical specifications.
Complete your PA-10 Water-Resistant Electric Linear Actuator system with compatible mounting brackets and control components. Refer to the compatibility tables to identify accessories suitable for your selected actuator configuration.
MOUNTING BRACKETS:
The PA-10 is compatible with the BRK-09 mounting bracket, which can be installed at either the stroke rod or motor-end mounting location and allows for over 180° of rotation. Refer to the corresponding product page for additional specifications and installation information.
CONTROL SYSTEMS:
The PA-10 features an efficient drive system with low power requirements. At maximum load, the 12 VDC model draws less than 6.0 A, making this high-force linear actuator suitable for battery-powered applications and easier to integrate with compatible control systems. Refer to the compatibility tables to select the appropriate controller for your application, or visit our control systems page for additional options.
Custom options
Looking for an actuator but the specifications don't exactly match what you require? We have an extensive list of customization capabilities to ensure you get exactly what you need for your project. Download this product's data sheet and find out more about your customization options!
The PA-10 Water-Resistant Electric Linear Actuator is designed for demanding outdoor applications that require compact size, high force, and dependable environmental protection. Its IP66 weather protection rating helps protect against dust and powerful water exposure, making the PA-10 well suited for marine, automotive, and agricultural applications. For applications requiring additional corrosion resistance, the PA-10 is also available in a Salt Spray-rated version with a specialized porcelain-plated housing tested for up to 400 hours of salt spray exposure. For more information about environmental protection ratings, please see our IP Rating Guide.
The PA-10 Water-Resistant Electric Linear Actuator combines high-force performance, compact construction, and IP66 protection for automation projects exposed to harsh environments. Its efficient drive system and multiple performance configurations allow you to select the force, speed, and current requirements that best match your application. Refer to the Force, Speed & Current table to compare available configurations. For complete specifications, customization options, and dimensional drawings, please see the PA-10 Data Sheet.
Actuators Comparison ChartThe PA-10 Water-Resistant Electric Linear Actuator is designed for straightforward integration into new and existing systems. Its compact footprint, durable construction, IP66-rated housing, and optional Salt Spray-rated configuration support dependable operation in outdoor and corrosive environments. Refer to the Product Specifications table for dimensions, duty cycle, environmental rating, connector type, materials, and other technical specifications.
Complete your PA-10 Water-Resistant Electric Linear Actuator system with compatible mounting brackets and control components. Refer to the compatibility tables to identify accessories suitable for your selected actuator configuration.
MOUNTING BRACKETS:
The PA-10 is compatible with the BRK-09 mounting bracket, which can be installed at either the stroke rod or motor-end mounting location and allows for over 180° of rotation. Refer to the corresponding product page for additional specifications and installation information.
CONTROL SYSTEMS:
The PA-10 features an efficient drive system with low power requirements. At maximum load, the 12 VDC model draws less than 6.0 A, making this high-force linear actuator suitable for battery-powered applications and easier to integrate with compatible control systems. Refer to the compatibility tables to select the appropriate controller for your application, or visit our control systems page for additional options.
Custom options
Looking for an actuator but the specifications don't exactly match what you require? We have an extensive list of customization capabilities to ensure you get exactly what you need for your project. Download this product's data sheet and find out more about your customization options!
Depending on your application, there are different specification requirements you should consider when determining the linear actuator you need. These requirements include force, stroke, speed and mounting dimensions. For detailed actuator information, you can refer to either the datasheet or the specification table located on the selected actuator's product page. You can also contact us to speak with one of our expert engineers.
Duty cycle is the fraction of the working period in which a linear actuator can remain active. You can calculate the duty cycle of a linear actuator by using the following equation: Duty cycle (%) = (Time the linear actuator is active) / (Time for one working period)
For example: With a 25% duty cycle, an actuator can run for 5 minutes continuously before needing to rest for 15 minutes before operating.
Stroke is the travel distance of the extending rod. To find the stroke length you require, measure your application from the fully retracted position to the fully extended position. The difference will equal the stroke length you require.
We always recommend purchasing an actuator with a higher force rating than what the application requires. If unsure of your force requirements, this article may help you calculate this: How to Calculate Force to Find the Right Linear Actuator
Yes, this is possible. However, it does depend on the units you are currently using. To synchronize actuators, they require a form of feedback such as a potentiometer or hall effect sensors. For more information, see below some of our key content regarding linear actuator synchronization.
The control box you choose should be able to provide sufficient voltage and current rating to your actuator. If you are unsure of the specifications, please contact us.
Alternatively, you can also find compatible control boxes on your selected linear actuator's product page.
Backdriving is when an actuator starts sliding down under load, when it is either overloaded or when the actuator has been damaged. Watch the video.
What Does Dynamic and Static Load Ratings Mean?Dynamic load rating is the amount of weight an actuator can pull or push safely when being powered. Static load rating is the amount of weight the actuator can hold or withstand without back driving when it is not being powered. For example, let's just say you have an actuator installed on a window and the static load rating of the actuator is 100lbs, it could experience backdriving when there is a high wind event, which means there will be more pressure exerted on the actuator which would exceed the 100lbs load rating of the actuator.
What Is Lateral Loading?Lateral loading is when the actuator experiences forces from the lateral plane. Actuators are not meant to handle lateral forces at all so if it experiences any lateral forces, it will likely damage the actuator or bend the rod. So it's advised never to use lateral forces and always make sure the actuator is fully in line or in sync with your application, so it does not take any load other than the axial load. Watch the video.
